ATOM TF-CARD Kit

SKU:K044

Description

ATOM TF-CARD is an Atomic based TF-card(microSD) module.It has a self elastic TF card slot, which can support up to 16GB capacity TF cards. You can save important configuration files and user data in the program to TF card, or call these files at any time during the program operation. The use of TF card reading and writing module can greatly reduce the occupation of precious flash space by external resource files.

Product Features

  • Compatible with ATOM Matrix/ ATOM Lite
  • Up to 16G TF card
  • FAT/FAT32 format
  • Self elastic TF-card (microSD) slot

Include

  • 1x ATOM TF-CARD
  • 1x ATOM Lite
  • 1x M2 HEX Key
  • 1x M2*8mm Hexagon socket cup head machine screw
  • 1x 18cm TYPE-C Cable

Application

  • Data saving
  • File reading and writing
  • Logging
  • Self elastic slot

Specification

Resources Parameter
Support type 16G FAT/FAT32 MicroSD
Net weight 23g
Gross weight 33g

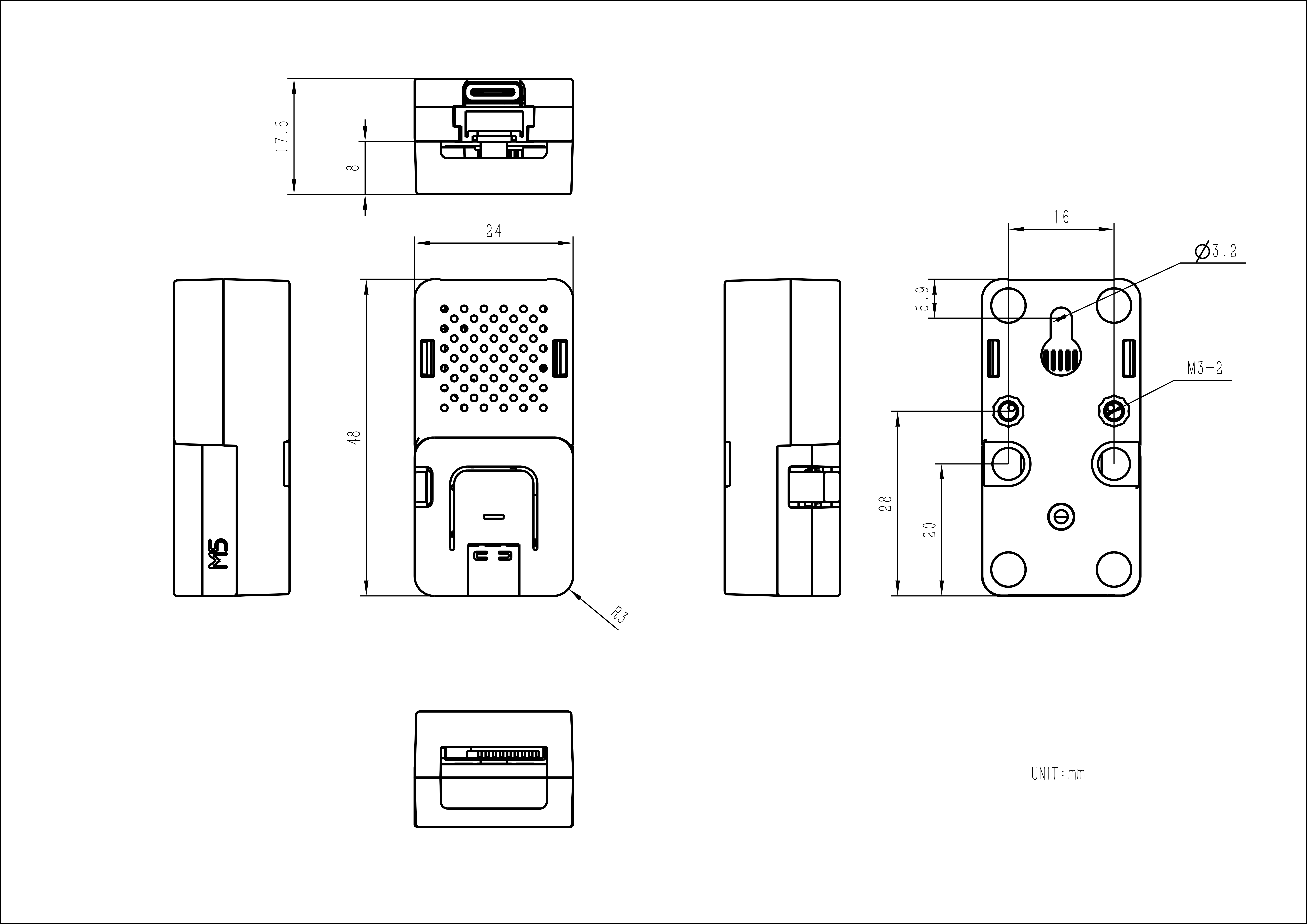

Product size 24*48*18mm
Package size 54*54*20mm

EasyLoader

EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.

Download Windows Version Easyloader Download MacOS Version Easyloader

Description:
SD card read-write file test, serial output view

PinMap

ATOM GPIO19 GPIO23 GPIO33
ATOM TF-CARD MOSI CLK MISO

Schematic

Example

Arduino

UIFLow

How to use Atomic tf_card and related API instructions in the UIFlow1.0
