AC POWER BASE
Description
AC POWER BASE is a high-performance AC->DC Buck Converter Module, supports AC 100 ~ 230V input. Through the internal buck module, the Base offers a reliable output DC 5V and DC 12V, dual-channel DC power supply. With a built-in EMC and pulse attenuator, It provides excellent anti-interference and high stability. In addition, the Base increases flexibility for any M5 main controllers' power supply, and it is ideally suited for a wide variety of fields including general electrical engineering applications.
Note: Do not open up or disassemble the product for any reason; This product requires 100 ~ 230V AC input.
Product Features
- Input Voltage.
- AC 100 ~ 230V INPUT
- Output Voltage.
- DC 5V@1A OUTPUT
- DC 12V@0.3A OUTPUT
- Built-in fuse protection 250V/1A
Include
- 1x AC POWER BASE
Specifications
| Resources | Parameter |
|---|---|
| Input voltage | AC 100 ~ 230V |
| Output voltage | 5V@1A， 12V@0.3A |
| Voltage accuracy | ±1% |
| Efficiency (Typ) | 82% |
| AC interface specifications | AC-018E |
| Built-in fuse specifications | 250V/1A |
| Power indicator | Red |
| Net weight | 81g |
| Gross weight | 107g |

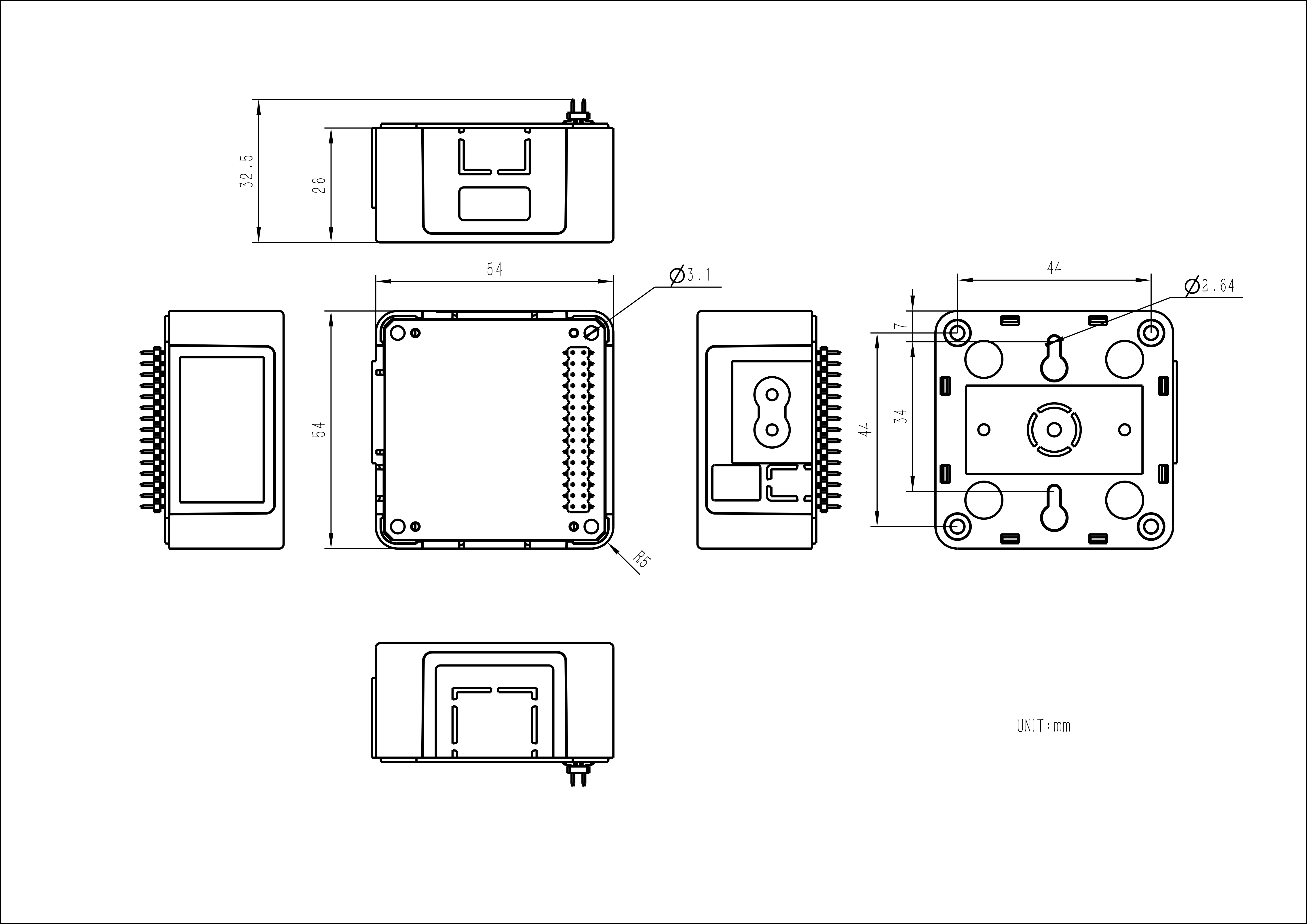

| Product size | 56 * 54 * 33mm |
| Packing size | 85 * 67 * 47 mm |
Pin mapping
| M5BUS | HPWR | 5V |
|---|---|---|
| AC POWER BASE | 12V | 5V |
