StickC-Plus2 Watch Kit
Description
StickC-Plus2 Watch Kit is a smartwatch kit that includes the M5StickC Plus2 IoT development board and a series of watch strap accessories. Leveraging the powerful hardware resources and expandability of the StickC-Plus2 itself, it can be used not only for time display but also for applications such as activity monitoring and smart home control. When paired with the M5Stack HAT hardware ecosystem for secondary development, it can unleash even more application possibilities for smart wearables.
Features
- Personalized support for custom display
- 200mAh battery
- Lightweight and portable
Includes
- 1 x StickC-Plus2
- 1 x LEGO adapter
- 1 x Wall/1515
- 1 x Watch strap
- 1 x Type-C USB (50cm)
Applications
- Smartwatch
Specifications
| Specification | Parameters |
|---|---|
| ESP32 | ESP32-PICO-V3-02 240MHz dual core, supports Wi-Fi, 2 MB PSRAM, 8 MB flash |
| PSRAM | 2 MB PSRAM |
| Flash | 8 MB flash |
| Input Voltage | 5V @ 500mA |
| Interfaces | Type-C x 1, GROVE(I2C+I/O+UART) x 1 |
| LCD Screen | 1.14 inch, 135 x 240 Colorful TFT LCD, ST7789v2 |
| Microphone | SPM1423 |
| Buttons | Custom buttons x 3 |
| Power Indicator LED | Green LED x 1 (non-programmable) |
| RTC | BM8563 |
| Buzzer | Onboard buzzer |
| MEMS | MPU6886 |
| Antenna | 2.4G 3D antenna |
| External Pins | G0, G25/G26, G36, G32, G33 |
| Battery | 200mAh @ 3.7V, internal |
| Operating Temperature | 0°C to 40°C |
| Strap Size and Weight | 230 x 22 x 6mm / 12.3g |
| Product Size | 48.0 x 24.0 x 13.5mm |
| Product Weight | 28.8g |
| Package Size | 124.0 x 67.0 x 23.0mm |
| Package Weight | 71.8g |
Learn
Power On/Off
Power On/Off
Power On:
Press the "BUTTON C" for more than 2 seconds, or wake up via the RTC-triggered IRQ signal. After triggering the wake-up signal, the hold(G4) pin needs to be set to high (1) in the program initialization to maintain power, otherwise the device will re-enter the power-off state.
Power Off:
When there is no external USB power supply, press "BUTTON C" for more than 6 seconds. Or, when there is no external USB power supply, set HOLD(GPIO4)=0 in the program to power off. When connected to USB, press "BUTTON C" for more than 6 seconds to turn off the screen and enter sleep mode, but not power off.
Press the "BUTTON C" for more than 2 seconds, or wake up via the RTC-triggered IRQ signal. After triggering the wake-up signal, the hold(G4) pin needs to be set to high (1) in the program initialization to maintain power, otherwise the device will re-enter the power-off state.
Power Off:
When there is no external USB power supply, press "BUTTON C" for more than 6 seconds. Or, when there is no external USB power supply, set HOLD(GPIO4)=0 in the program to power off. When connected to USB, press "BUTTON C" for more than 6 seconds to turn off the screen and enter sleep mode, but not power off.

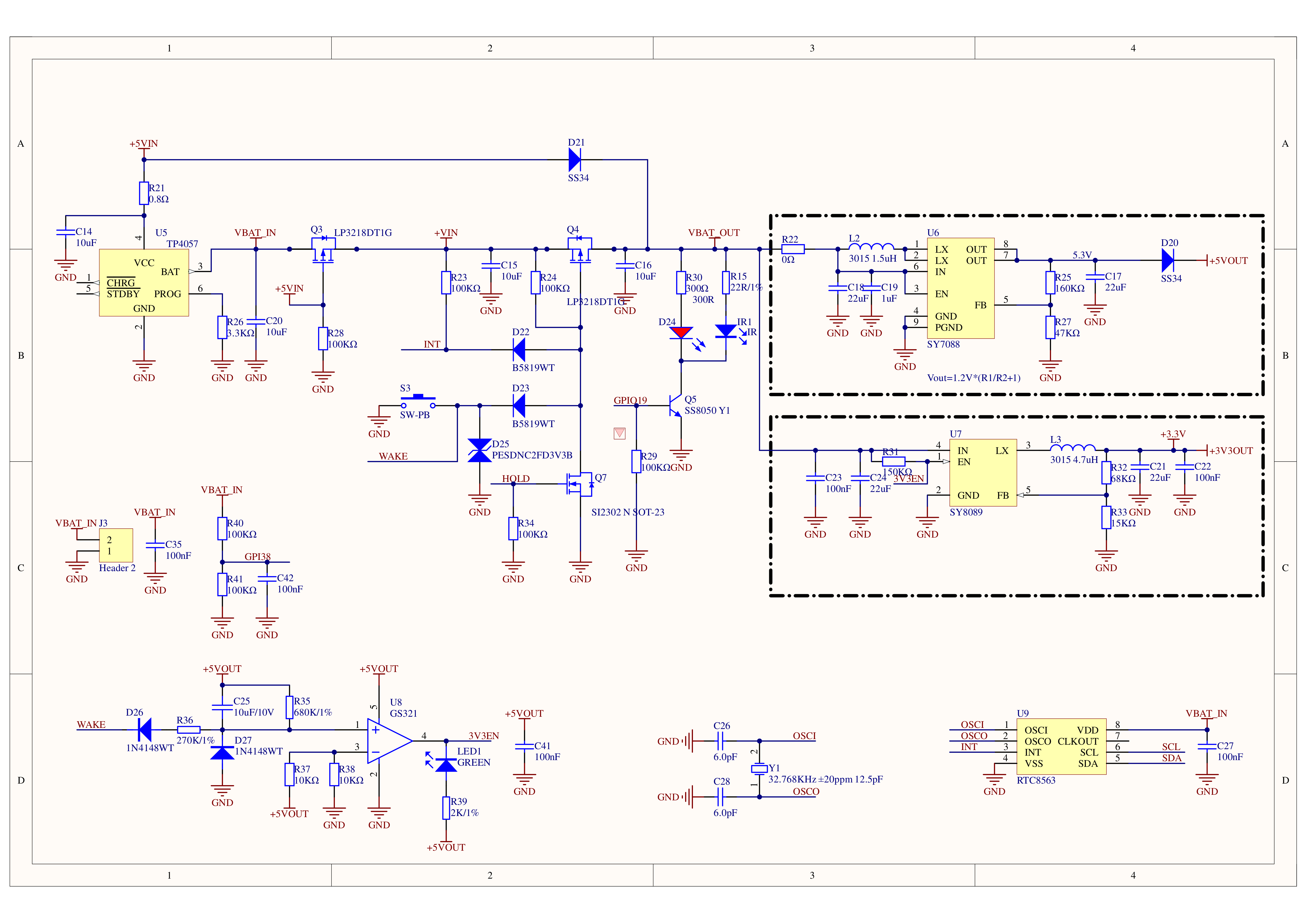

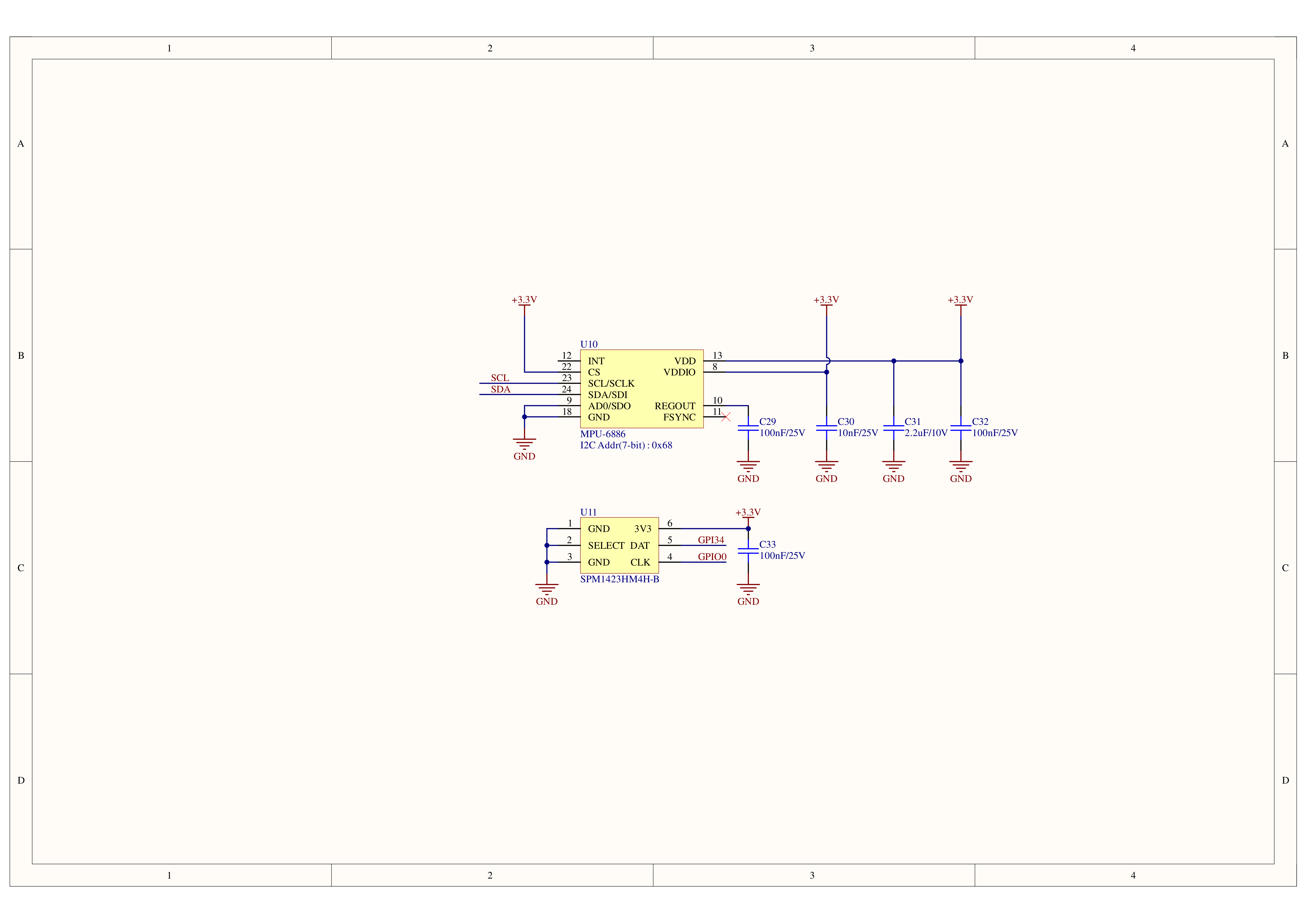

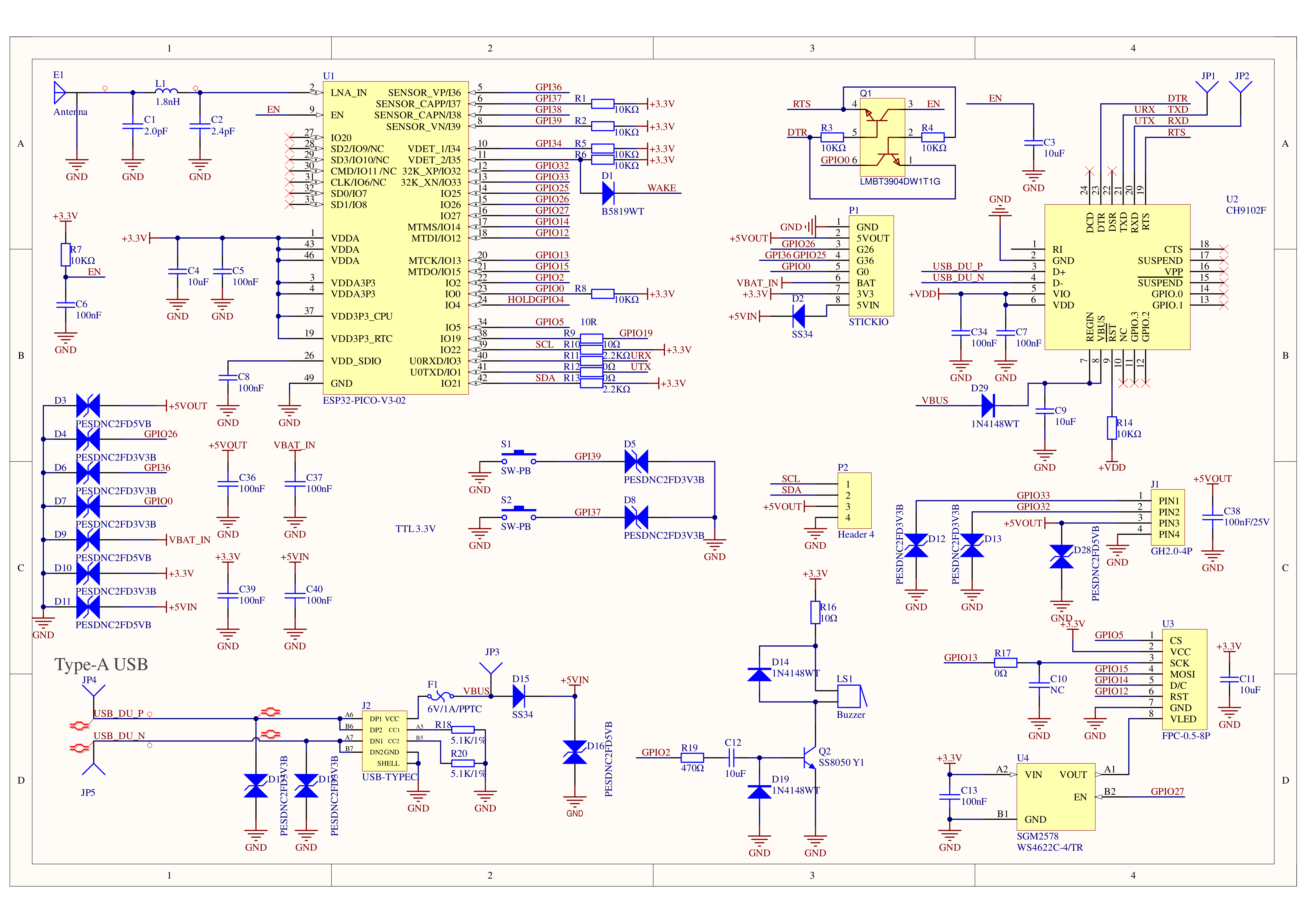

Schematics
Model Size
1/4
Datasheets
Softwares
Arduino
USB Drivers
Click the link below to download the driver that matches your operating system. CP34X (for CH9102) driver package. After extracting the package, select the installation package that matches your operating system's bit version. If you encounter issues such as timeout or "Failed to write to target RAM" when downloading the program, try reinstalling the device driver.
| Driver Name | Compatible Chip | Download Link |
|---|---|---|
| CH9102_VCP_SER_Windows | CH9102 | Download |
| CH9102_VCP_SER_MacOS v1.7 | CH9102 | Download |
MacOS Port Selection
In MacOS, there may be two optional ports. Please select the port named wchmodem for use.
EasyLoader
| Easyloader | Download | Note |
|---|---|---|
| StickC-Plus2 Factory Test Easyloader | download | / |
Video
- StickC-Plus2 Feature Introduction
