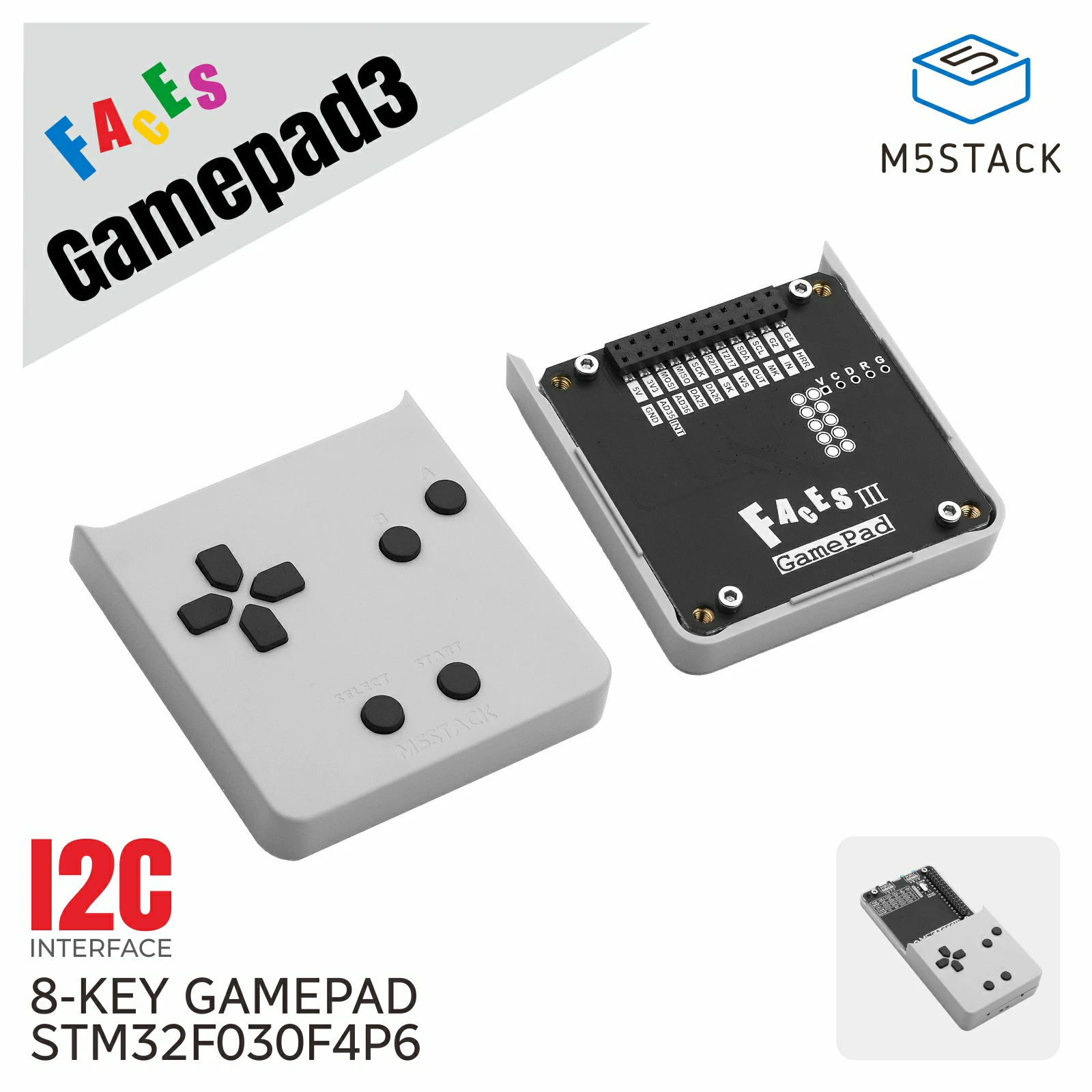

Faces Gamepad3

SKU:A004-V3

Description

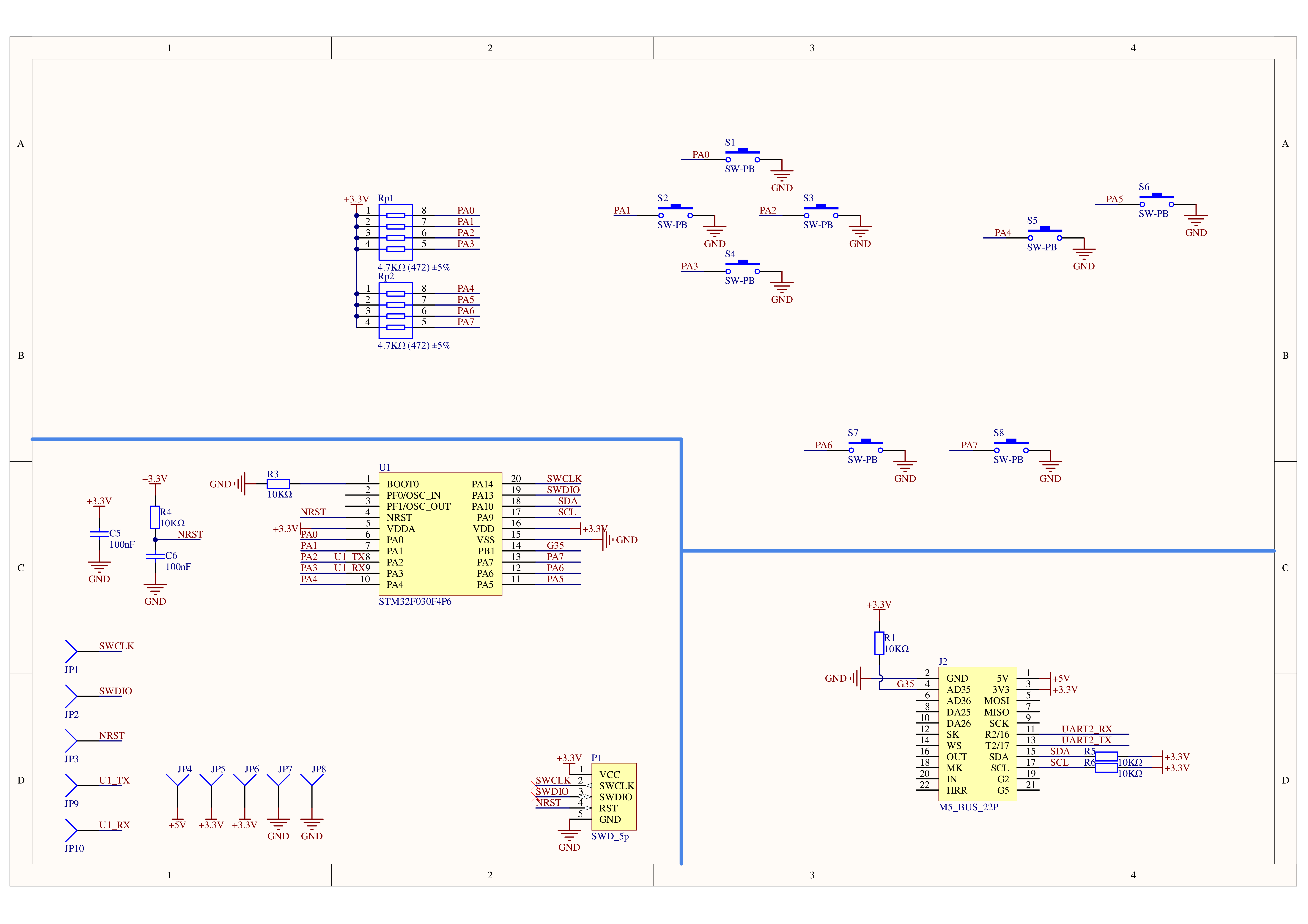

Faces Gamepad3 is a game control input panel designed for the Faces Bottom series, providing classic directional controls, A/B buttons, and interactive buttons such as Pause/Start, making it suitable for gaming control and quick-operation scenarios. It integrates an STM32 core MCU that communicates with the host via the I2C communication protocol and an interrupt pin, featuring fast response and high integration.

Tutorial

Arduino IDE

This tutorial will show you how to program and control the Faces Gamepad3 device with the Arduino IDE.

Features

Built-in STM32 core MCU: STM32F030F4P6
I2C communication interface
Gamepad button layout

Includes

1 x Faces Gamepad3

Applications

Gaming control input scenarios
Directional control and quick-operation scenarios
Embedded projects requiring button interaction

Specifications

Specification	Parameter
MCU	STM32F030F4P6
Communication Interface	I2C @0x08

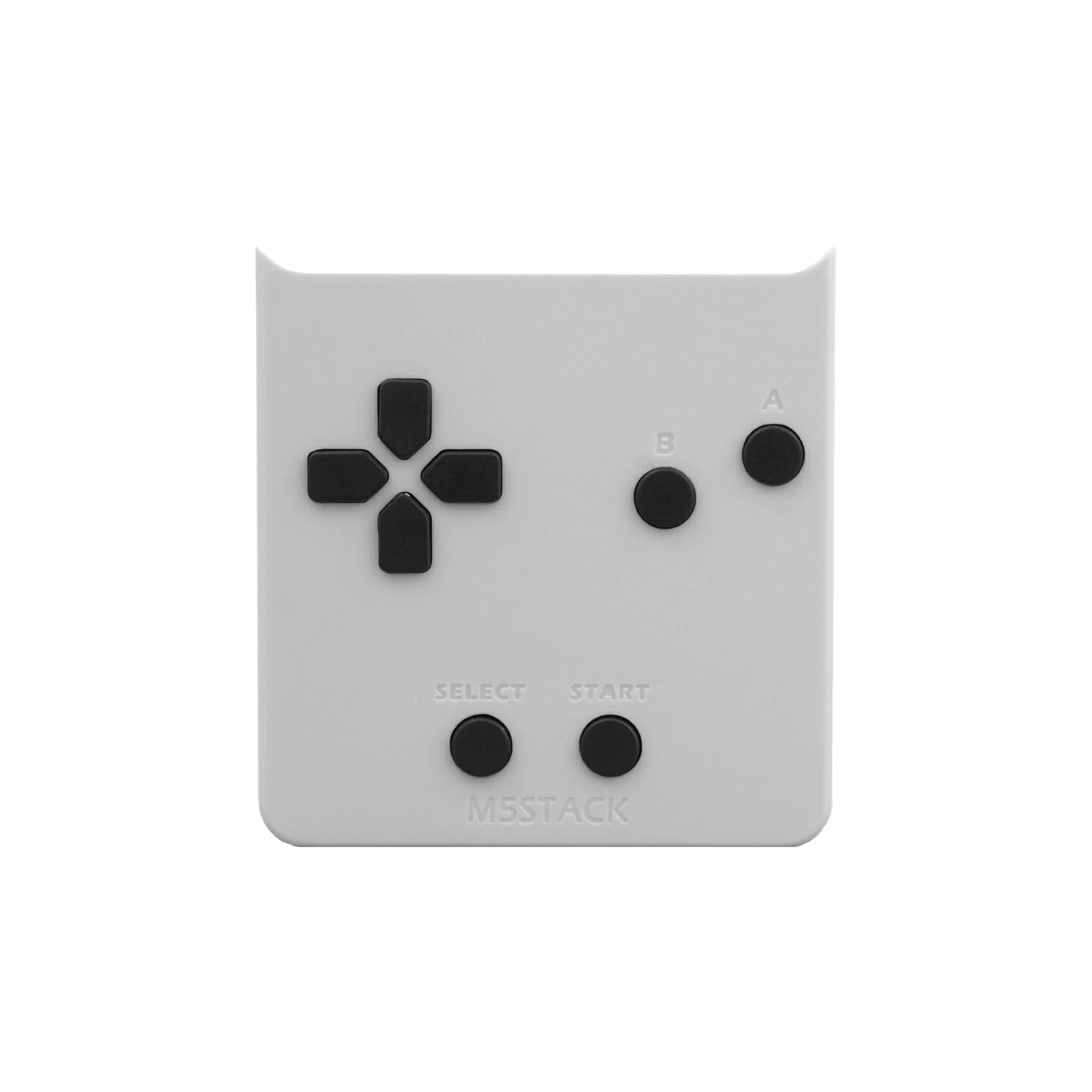

Button Layout	D-pad, A/B, Start/Select
Number of Buttons	8 Buttons
Standby Power (Panel Only)	3.3V@4.91mA

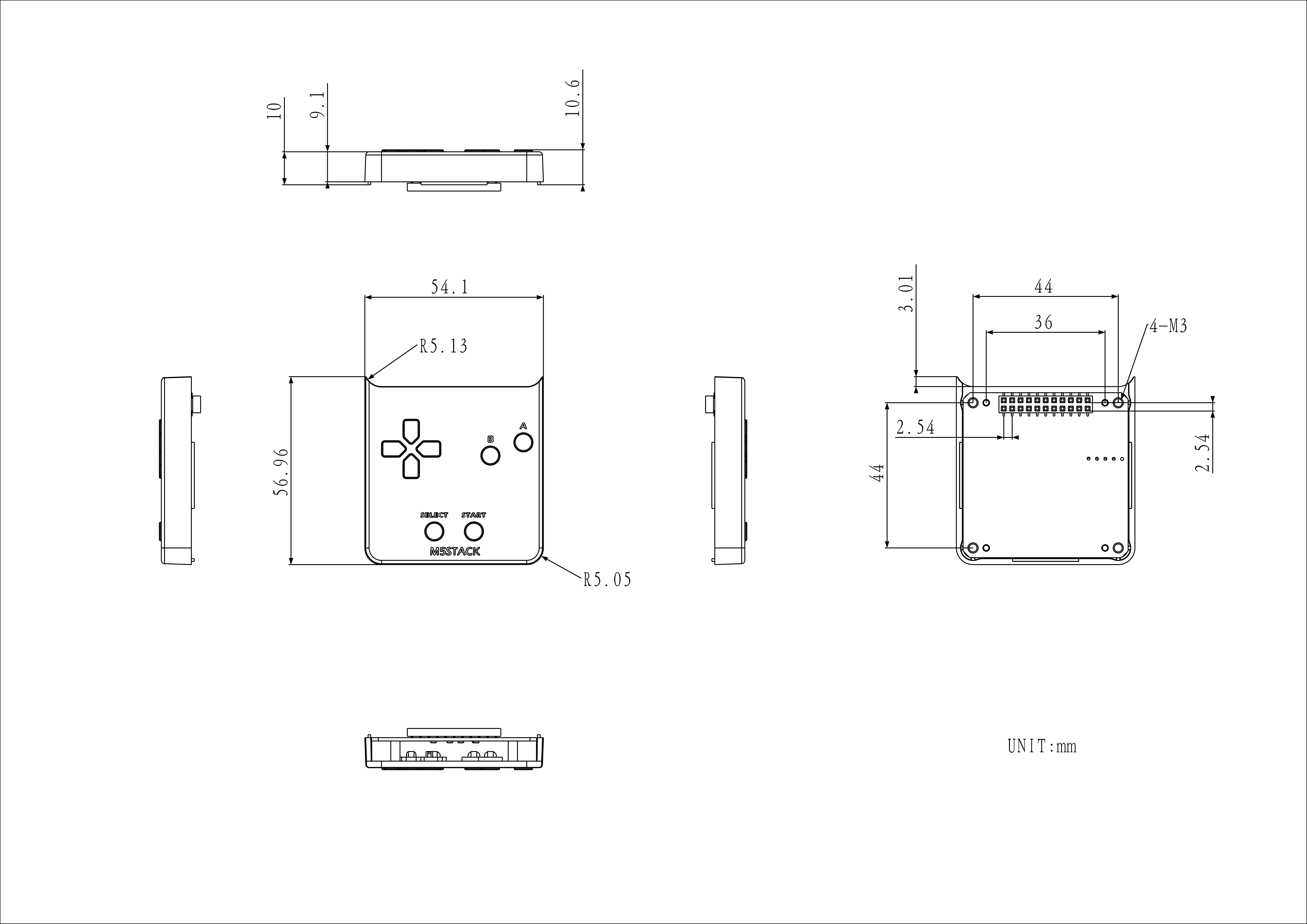

Product Size	57.0 x 54.1 x 10.7mm

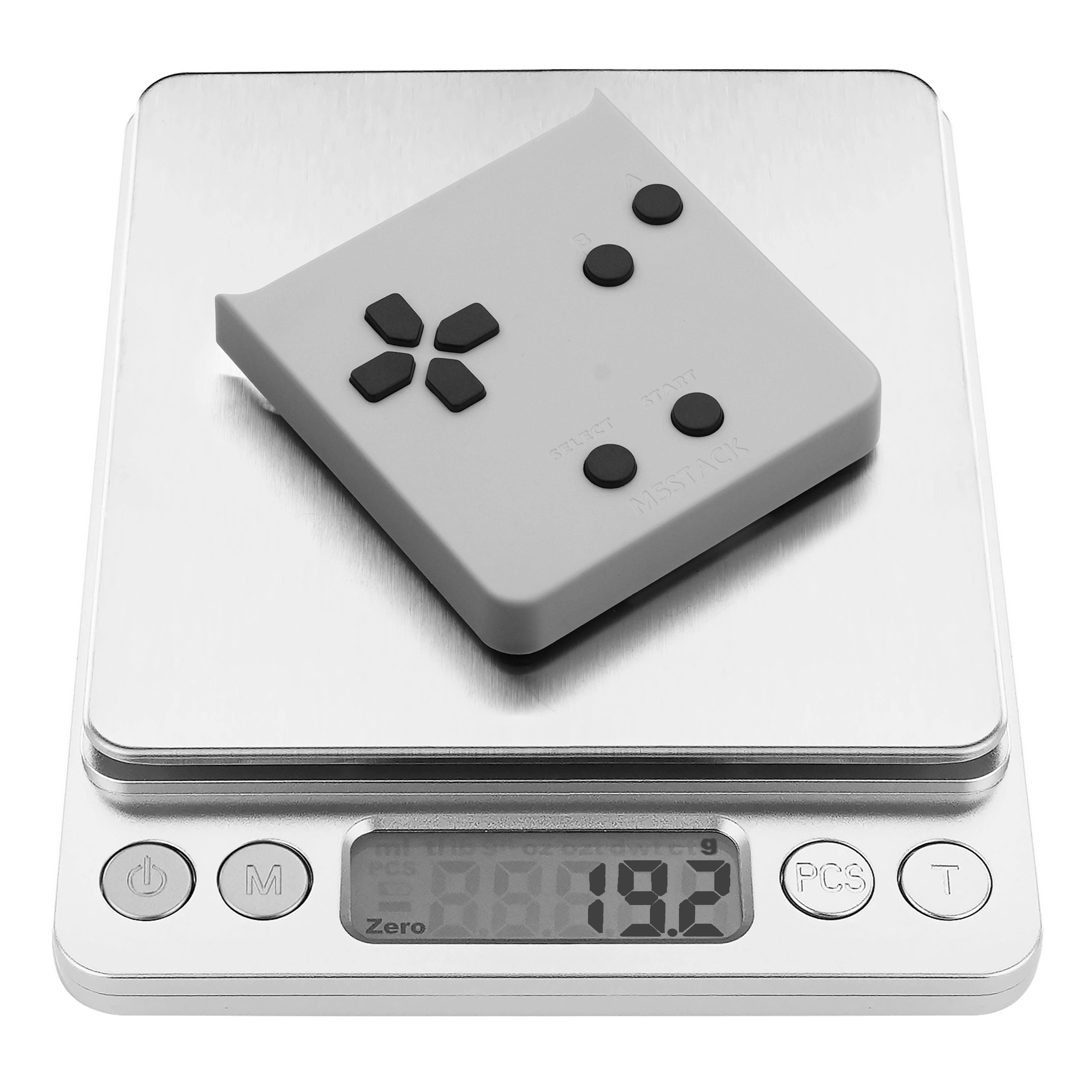

Product Weight	19.2g

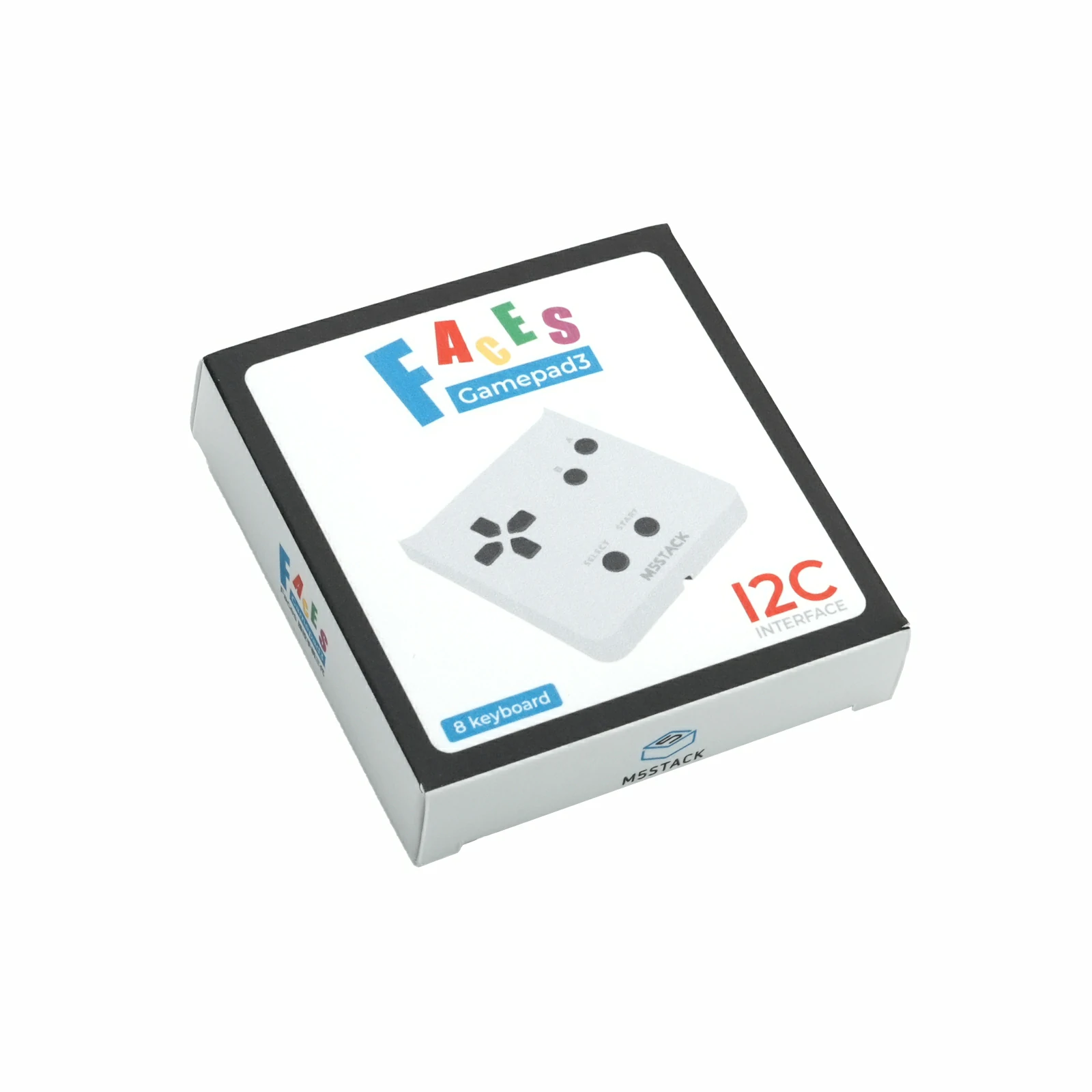

Package Size	56.0 x 59.0 x 19.0mm
Gross Weight	24.0g
