Module AIN4-20mA 13.2

SKU:M133

Description

AIN4-20mA Module 13.2 is a quad-channel 4~20mA current analog acquisition module. It adopts the STM32G030F6 main control chip and a dedicated acquisition chip with isolation to communicate with the M5 host for i2c communication. Supports switching to internally or externally powered wiring via jumper caps. On-board power isolation chip and built-in op amp circuitry accurately measure external current sensors and ensure signal accuracy and system safety. In terms of power supply, the DC-JACK interface and the corresponding DC-DC boost circuit can provide power to the entire device. 'Suitable for power system equipment monitoring, motor control, energy management and automation, and industrial process control'.

Features

  • STM32G030F6® 32-bit Cortex®-M0+ CPU
  • I2C communication
  • Support four 2 or 4-wire sensors, jumper cap switching
  • Built-in galvanic isolation chip
  • Support Arduino, UIFlow and other programming platforms

Includes

  • 1*AIN4-20mA Moudle 13.2
  • 12* jumper cap
  • 5*2.54mm plug-in terminal block

Applications

  • Power system equipment monitoring
  • Motor control
  • energy management
  • Automation and industrial process control

Specification

Resources Parameters
MCU STM32G030F6(64 Kbytes of Flash/8 Kbytes of SRAM)
Power isolation chip F2424S-2WR3
Signal isolation chip HCNR200
Op amp chip SGM321YC5/TR
I2C mailing address 0x55
Typical values of IN+ and IN- input impedances 200Ω
Operating temperature 0-40°C
External DC supply voltage 9-24V
Product Size 54* 54* 13mm
Package Size 95 * 65 * 25mm
Product Weight 26.9g
Package Weight 51.7g

Schematic

schematics

Jumper cap connection and instructions

  • If your current sensor already has an external power supply, the jumper cap is connected as shown on the left
  • If your current sensor does not have an external power supply, connect the jumper cap as shown on the right, and connect the interface of AIN4-20mA Module 13.2 to the appropriate external power supply as needed.
schematics

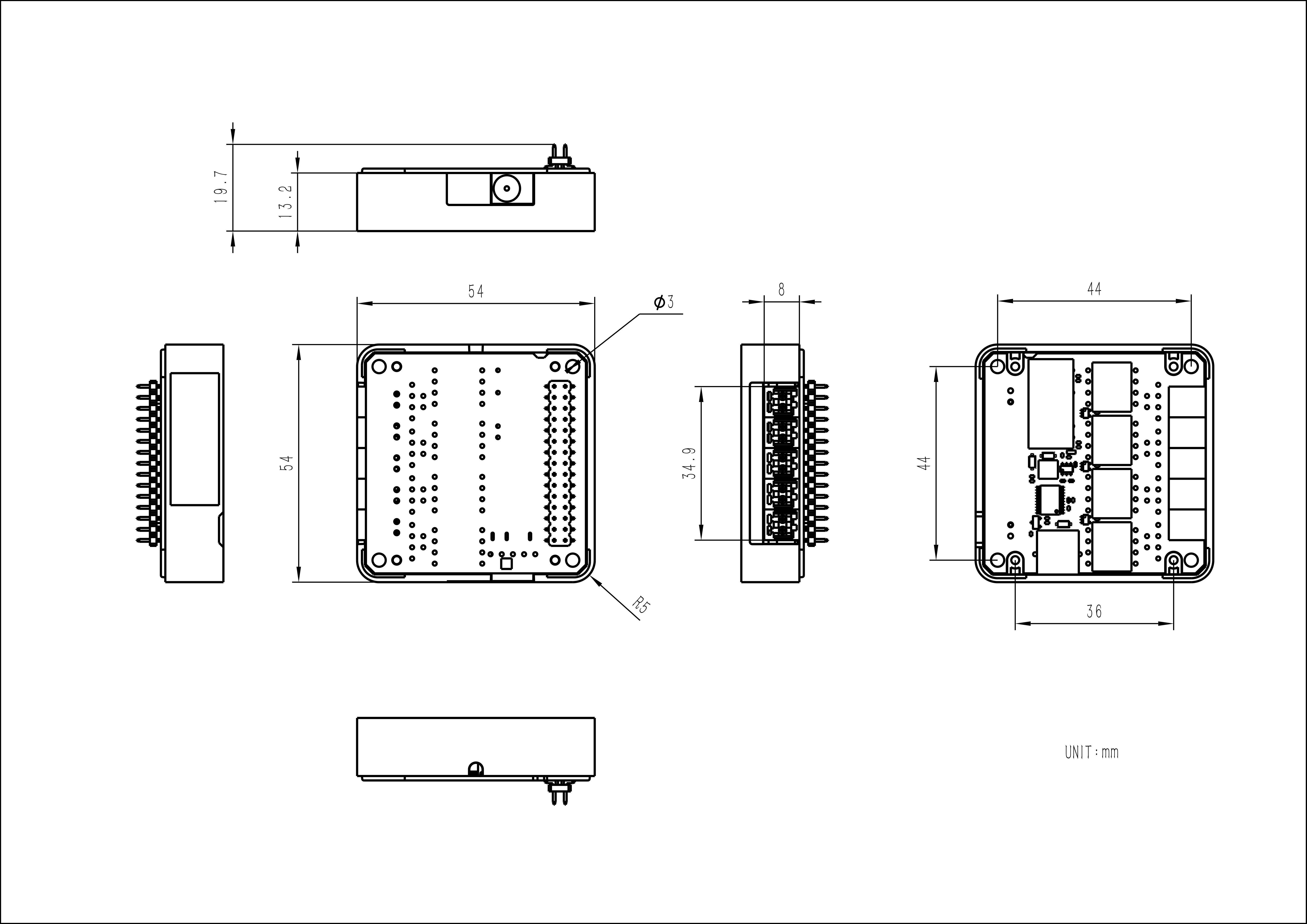

Module Size

module size

Protocol

module size

Examples

Arduino

UIFlow

How to use Module ain4_20ma on the UIFlow 1.0 graphical programming platform and related API instructions.
