Unit BPS v1.1
Get one now !

SKU:U090-B

Description

Barometric Pressure Unit is a barometer unit that uses QMP6988 barometric pressure sensor to measure atmospheric pressure and altitude estimation, with a relative accuracy of ±0.039hPa (±0.12hPa, equivalent to ±1m height difference), a wide measurement range, and an integrated temperature sensor inside the chip, while the Absolute temperature accuracy is 2°C.

Features

  • Built-in temperature and pressure sensors
  • High precision (pressure accuracy: ±0.039hPa; Absolute Temperature accuracy: 2°C)
  • Low current consumption: 21.4uA
  • Development platform: Arduino, UIFlow (Blockly, Python)
  • 2x LEGO™ compatible holes

Includes

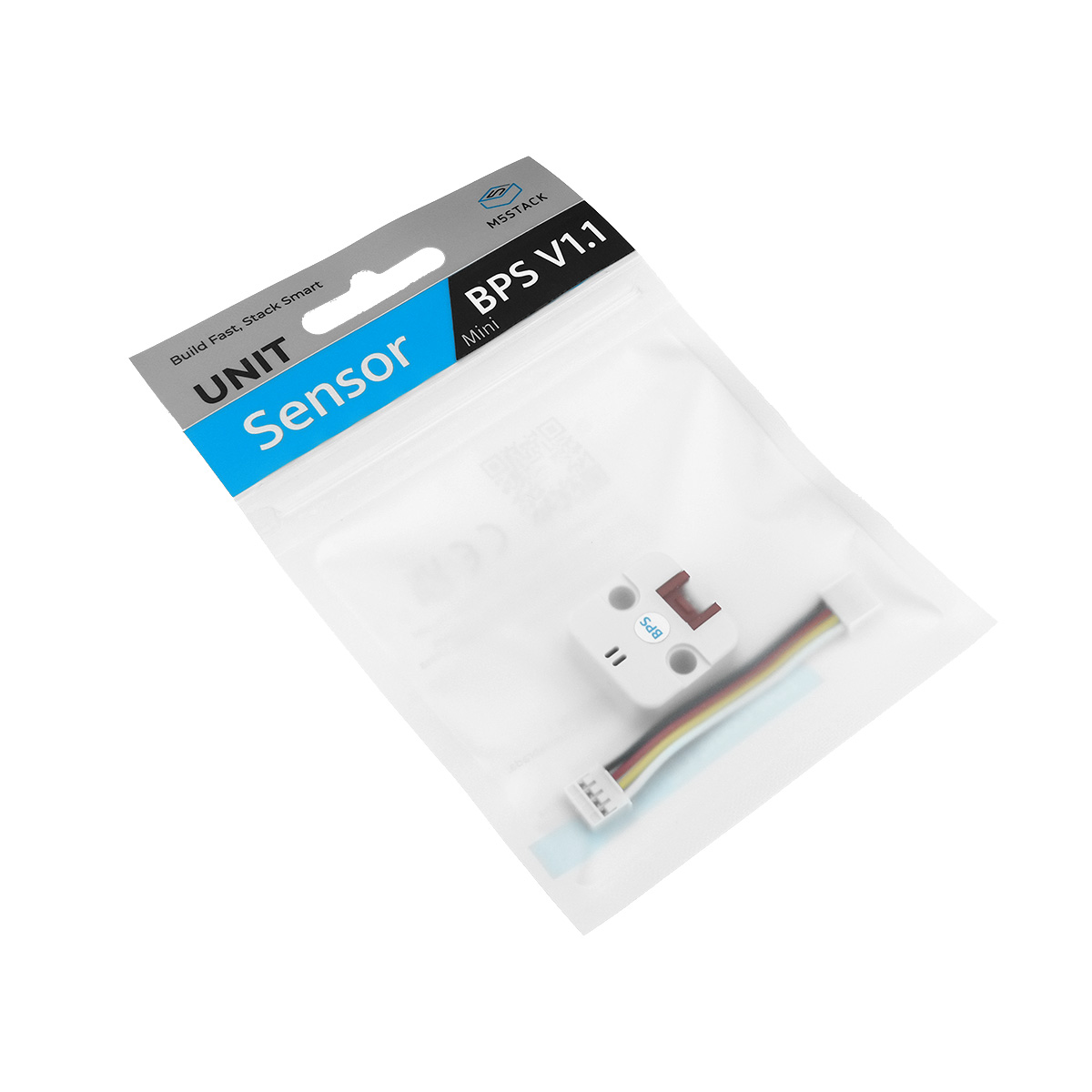

  • 1x BPS Unit v1.1 (QMP6988)
  • 1x Grove Cable (5cm)

Applications

  • Indoor navigation (floor detection)
  • Altimeter
  • Weather forecast

Specifications

Resources Parameters
Sensor QMP6988
LDO HT7533
Operating Pressure Range 30kPa to 110kPa
Relative Pressure Accuracy ±3.9
Pressure Resolution Temperature Resolution
Temperature Resolution 0.0002°C
Temperature measurement range -40-80°C
I2C Address 0x56
voltage support 5v
Product Size 24mm × 24mm ×8.1mm
Package Size 136mm × 92mm × 13mm
Product Weight 3.3g
Package Weight 6.9g

Datasheets

Schematics

schematics

Model Size

module size

Softwares

Arduino

UIFlow

How to use Unit bps and related API instructions in the UIFlow2.0

Video

Compatible

Unit BPS v1.1
+
PORT.A
GND
5V
I2C_SDA
I2C_SCL
PORT.A
GND
5V
G2
G1
PORT.B
GND
5V
G9
G8
PORT.C
GND
5V
G17
G18
"Unit BPS v1.1" & "CoreS3" Grove Port Connection Note:
Please modify the example program according to the actual PIN number when using.
Available Ports: PORT.A PORT.B PORT.C .
