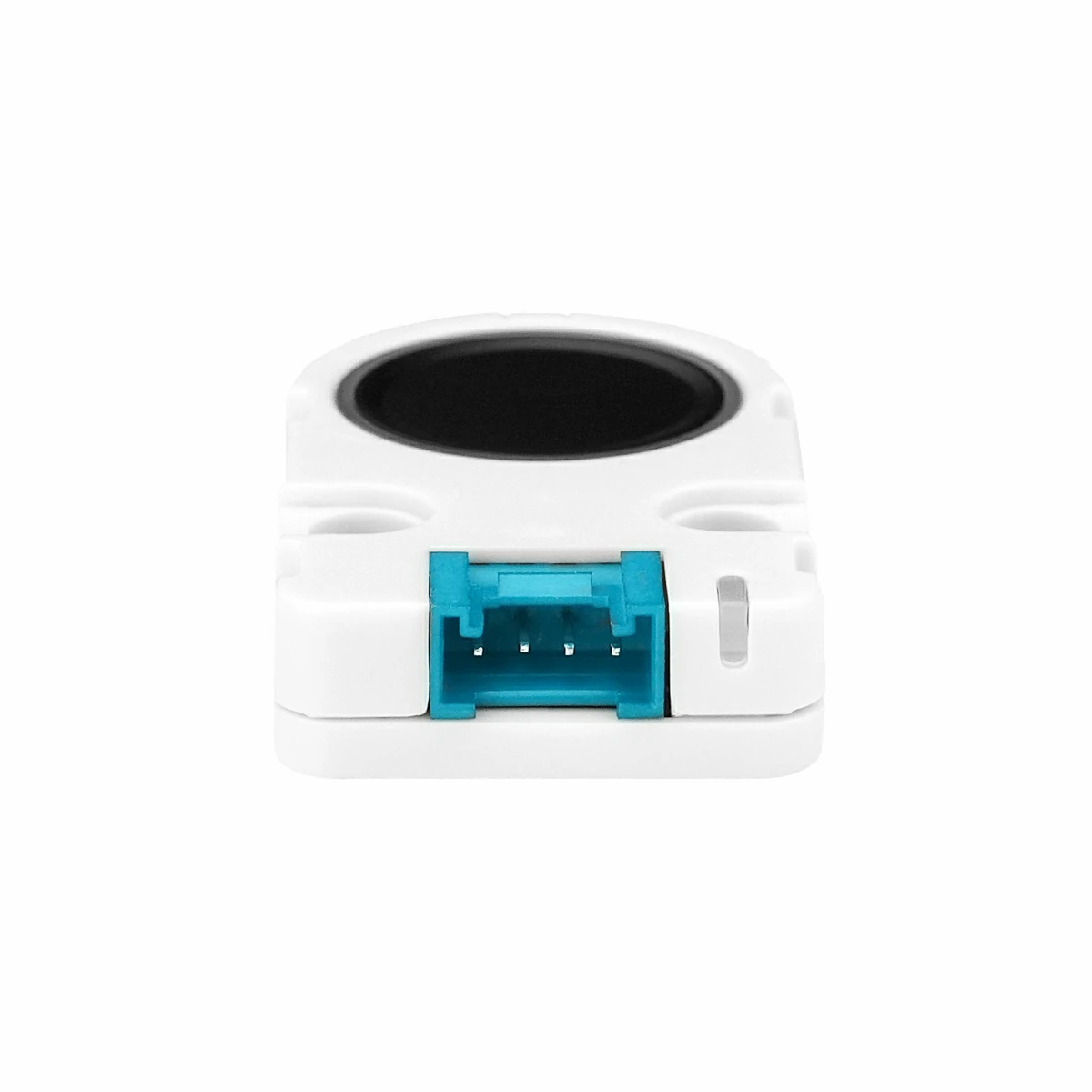

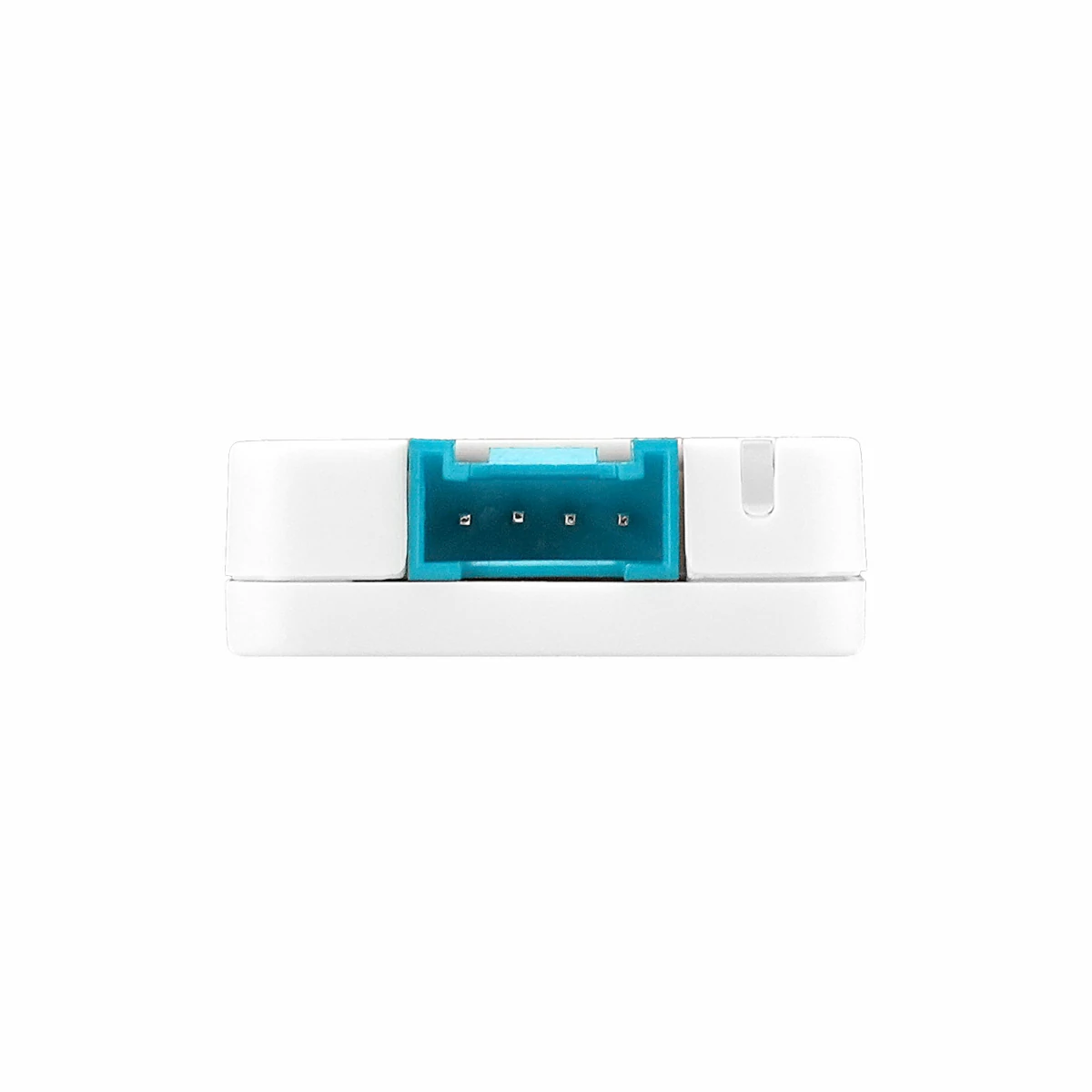

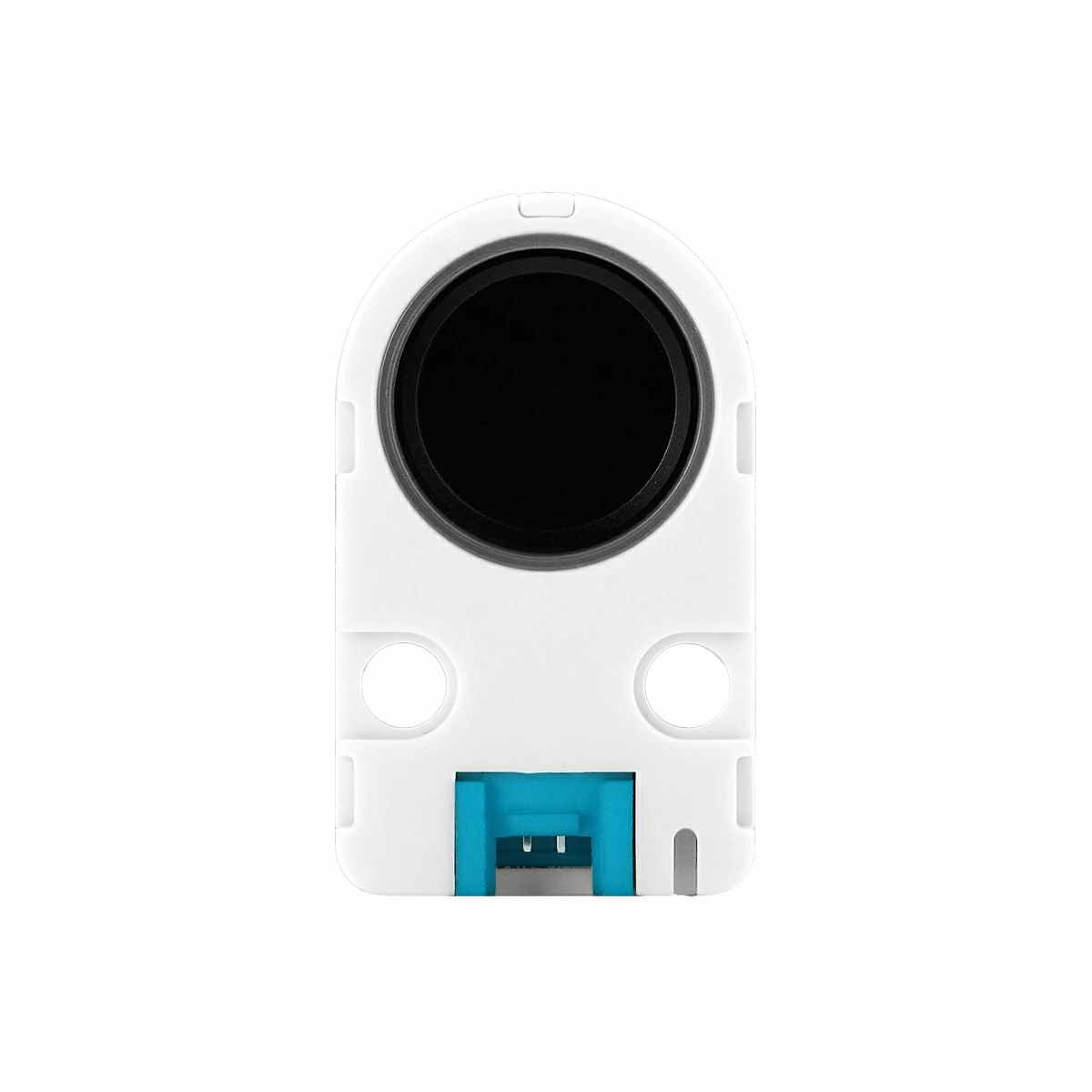

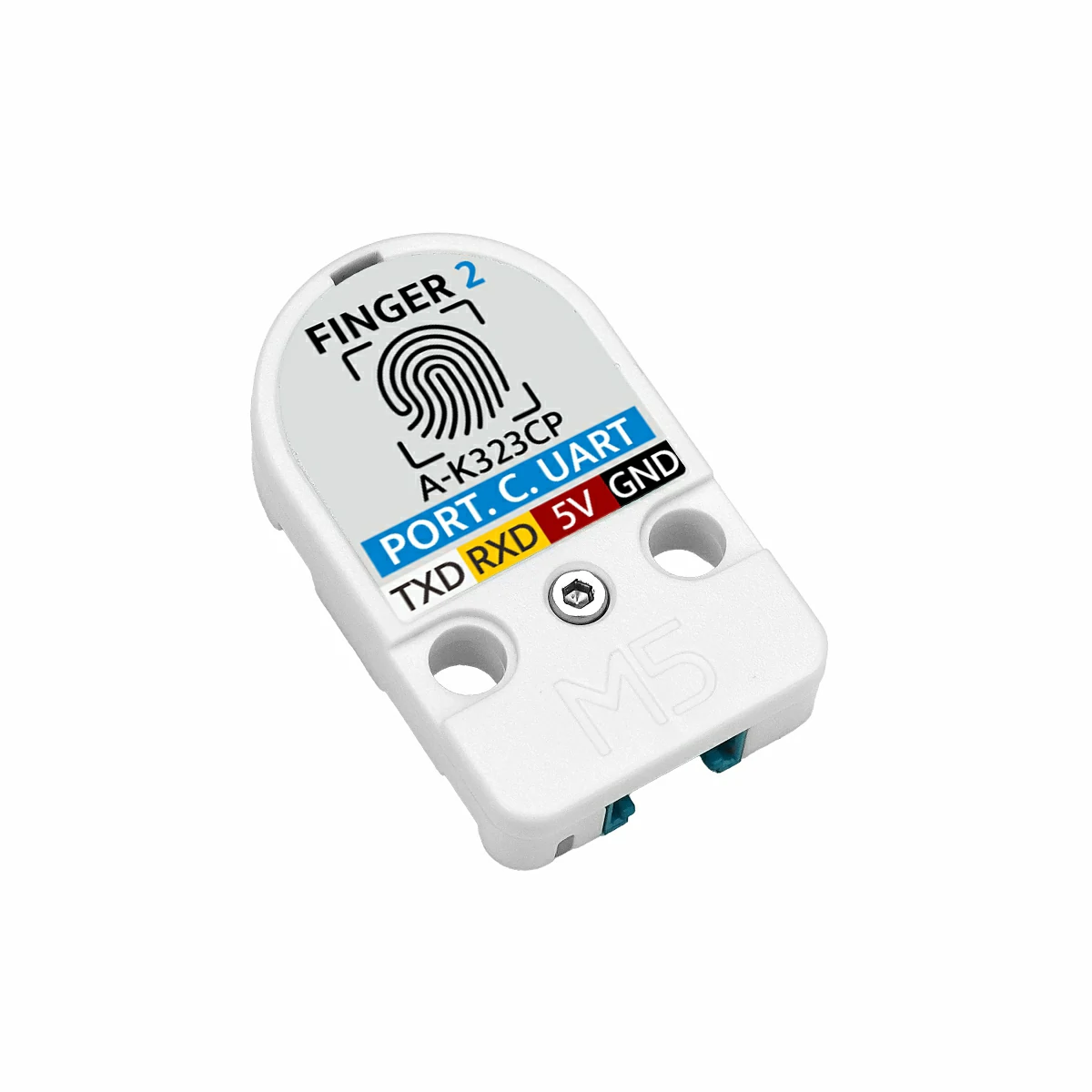

Unit Fingerprint2

SKU:U203

Description

The Unit Fingerprint2 is a high-performance fingerprint recognition sensor unit, internally integrating an STM32 core controller and an A-K323CP all-in-one fingerprint recognition module. It uses a semiconductor capacitive sensor with functions such as fingerprint acquisition, feature extraction, registration, comparison, storage, and retrieval. The module has a built-in fingerprint recognition algorithm capable of adapting to both dry and wet fingers. It offers flexible fingerprint data management, high data security, and fast search and positioning functions. This unit adopts a UART communication interface for easy integration with various main control platforms and includes a multicolor LED ring and power indicator for interactive status prompts. It is ideal for rapid development and integration in scenarios such as smart door locks, access control attendance, identity authentication, financial payment, and small security systems.

Features

Integrated STM32 core controller
High-resolution capacitive fingerprint sensor with high-accuracy recognition capability
Fingerprint capacity of 100 entries
Adaptive processing for both dry and wet fingers
Fingerprint management, precise matching, and search functions

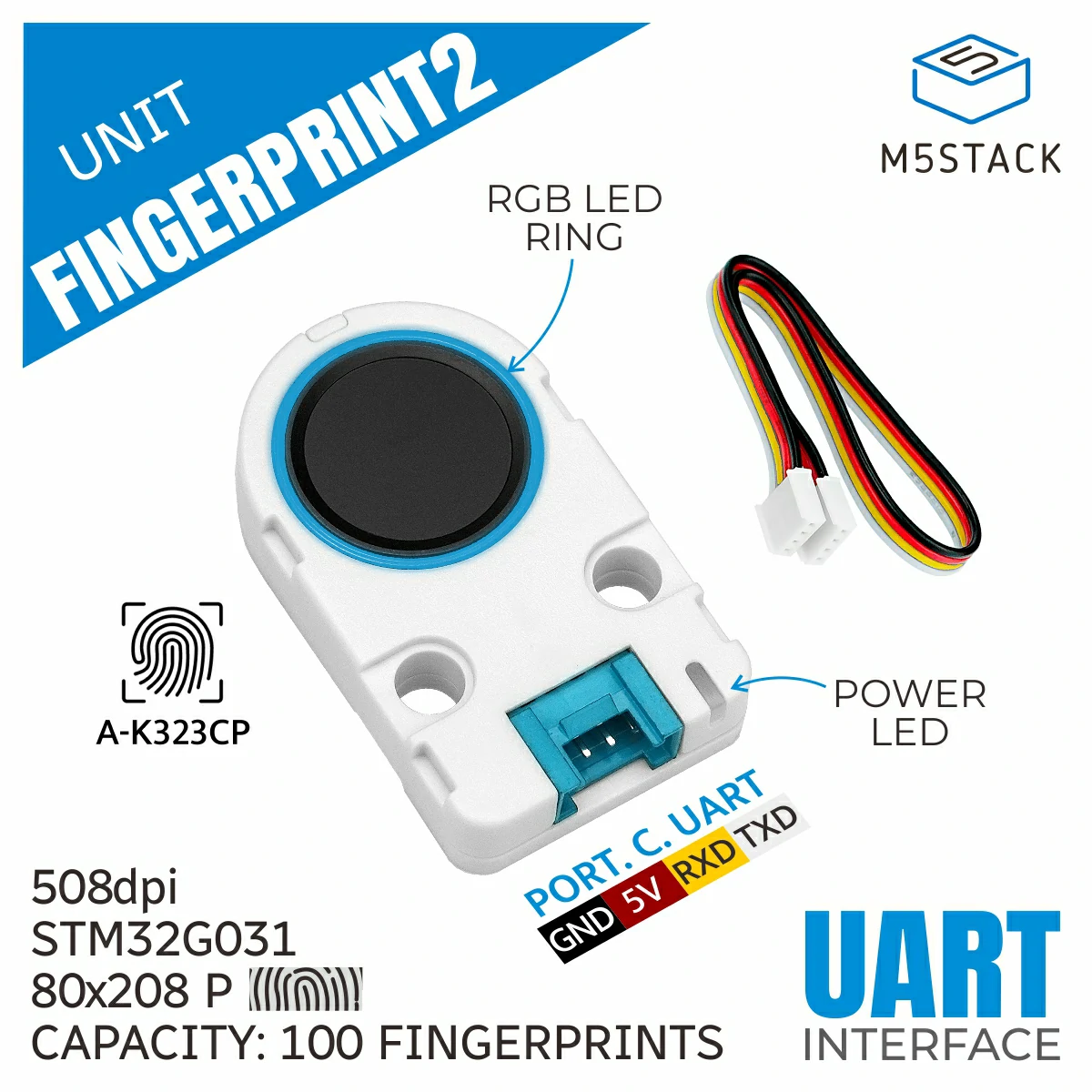

Built-in RGB LED ring supporting seven colors for (working status) indication
Development Platform
- UiFlow2
- Arduino IDE
- PlatformIO

Includes

1 x Unit Fingerprint2
1 x HY2.0-4P Grove Cable (20cm)

Applications

Smart door locks
Access control attendance
Identity authentication
Financial payment
Small security systems

Specifications

Specification	Parameter
MCU	STM32G031G8U6
Fingerprint Module	A-K323CP
Fingerprint Resolution	508 dpi
Image Pixel	80 * 208
Image Acquisition Size	8230 Bytes (80 * 208 / 2 = 8320, 4 bits per pixel)
Fingerprint Capacity	100 entries
Fingerprint Data Size	7262 Bytes / entry
Communication Method	UART 115200bps @ 8N1
Power Consumption	Working mode: Breathing light ON 40mA; Breathing light OFF 37.25mA Sleep mode: 14.11mA

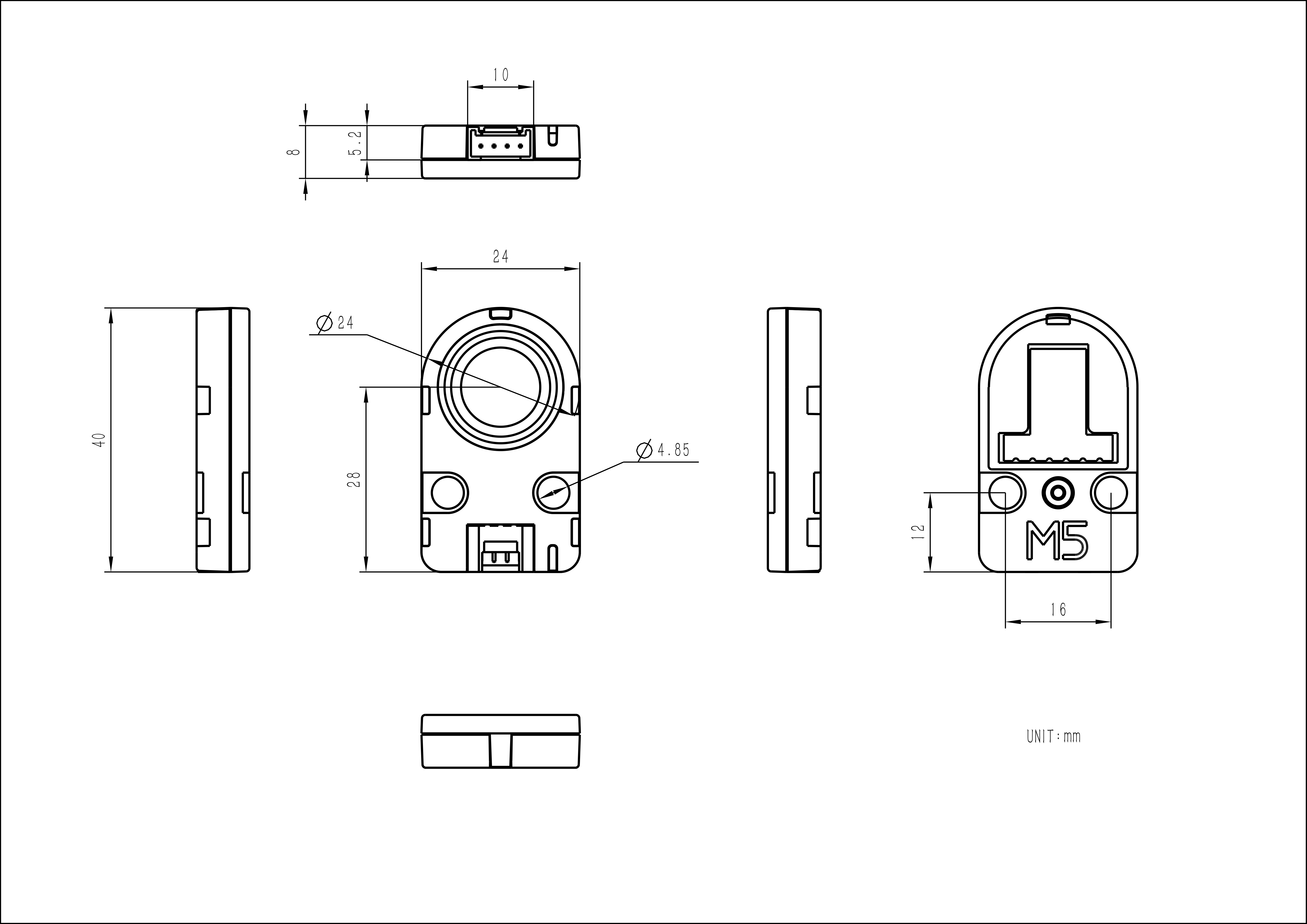

Product Size	24.0 x 62.0 x 8.0mm

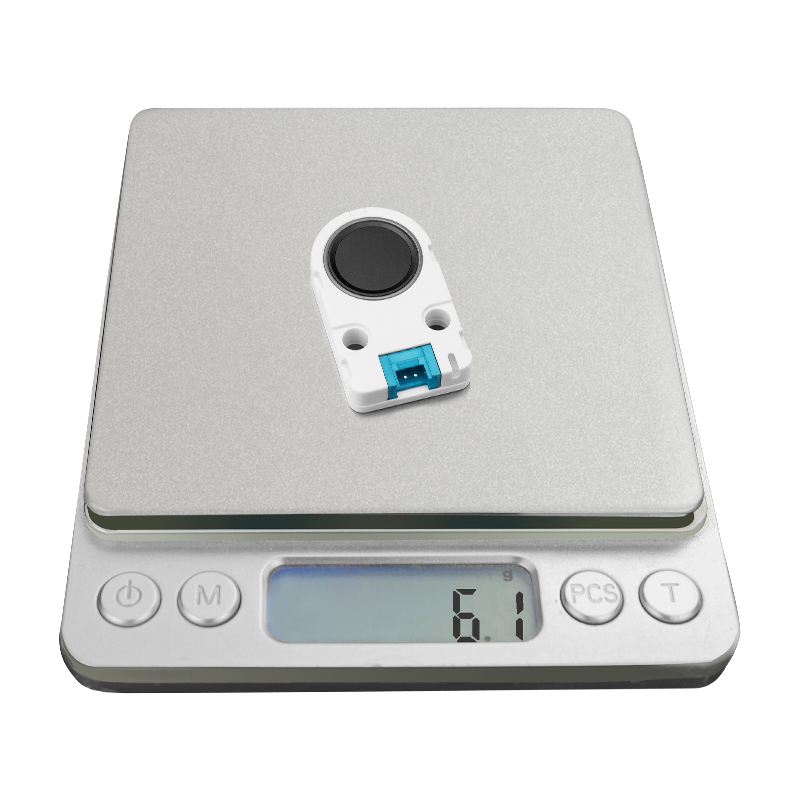

Product Weight	6.1g
Package Size	138.0 x 93.0 x 11.0mm
Gross Weight	11.6g

Schematics

Unit Fingerprint2 Schematics PDF

1/1

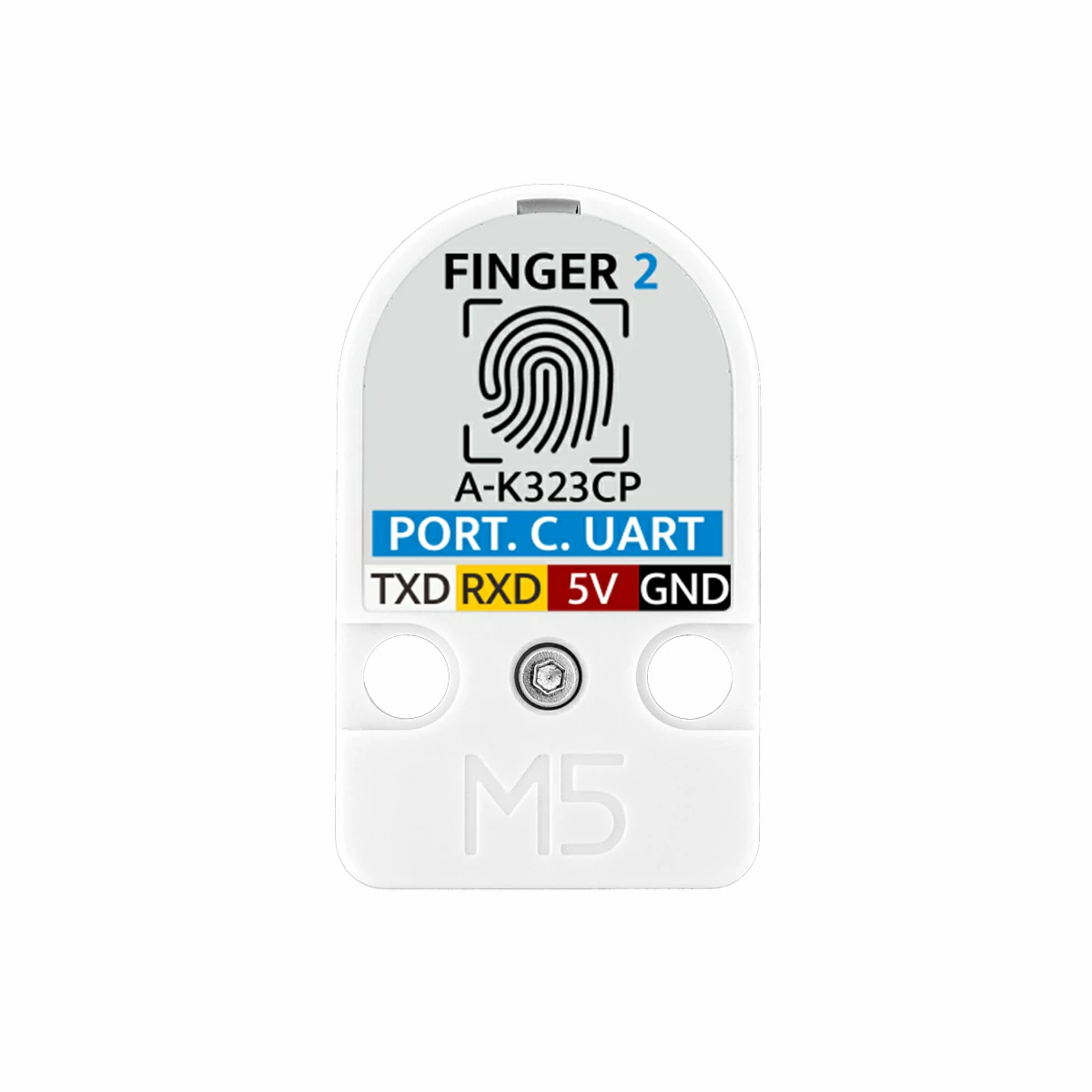

PinMap
