LASER.TX

SKU:U066

Description

LASER.TX is one of the communication devices among the M5Units family - a Laser emitter with adjustable focal length.

It is mainly built with a laser diode Laser communications devices are wireless connections through the atmosphere. They work similarly to fiber-optic links, except the beam is transmitted through free space. While the transmitter and receiver must require line-of-sight conditions, they have the benefit of eliminating the need for broadcast rights and buried cables.

Laser communications systems can be easily deployed since they are inexpensive, small, low power and do not require any radio interference studies. Two parallel beams are needed, one for transmission and one for reception therefore we have a LASER.RX in parallel.

warning!!! laser is dangerous for human being, Don’t aim a laser pointer towards a person’s head. This is to prevent the beam from getting in their eyes, possibly causing eye damage. Remember that people can move unexpectedly, so keeping away from their heads is a good idea

Product Features

  • Laser transmitter
  • adjustable focal length
  • Work voltage: 5V
  • Pair with LASER.RX
  • Two Lego-compatible holes
  • Program Platform: Arduino, UIFlow(Blockly, Python)

Include

  • 1x LASER.TX unit
  • 1x GROVE cable

Applications

  • Laser communication system on space.

Specification

Resources Parameter

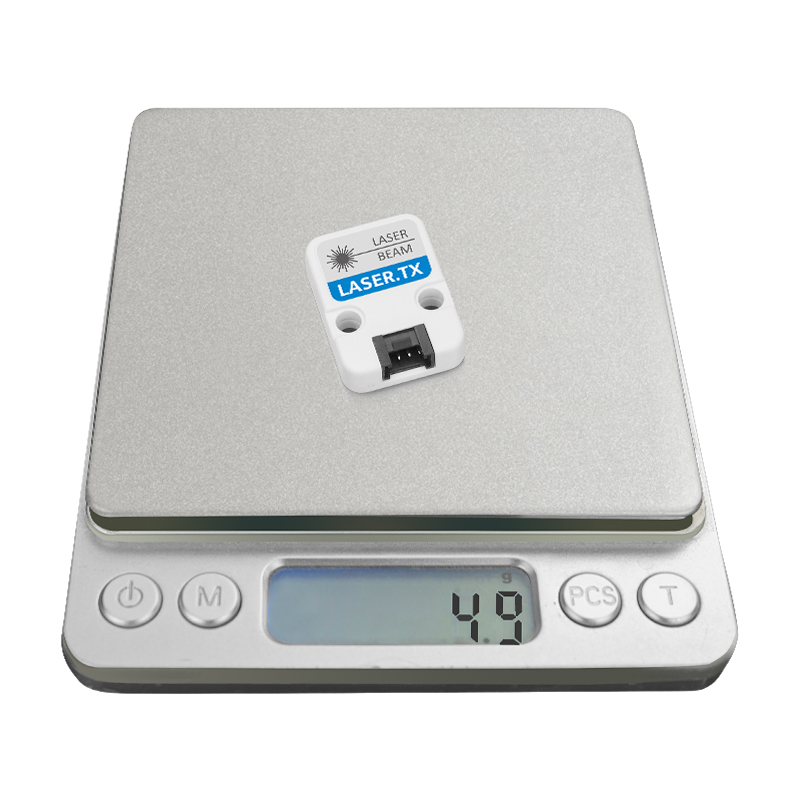

Net weight 5g
Gross weight 19g
Product Size 32*24*8mm
Package Size 67*53*12mm

EasyLoader

download EasyLoader

1.EasyLoader is a simple and fast program burner. Every product page in EasyLoader provides a product-related case program. It can be burned to the master through simple steps, and a series of function verification can be performed. .

  1. After downloading the software, double-click to run the application, connect the M5 device to the computer through the data cable, select the port parameters, click "Burn" to start burning. (For M5StickC burning, please Set the baud rate to 750000 or 115200)

Pin Map

M5 PORTB GPIO36 GPIO26 5V GND
LASER_TX / TX 5V GND

Schematic

Example

Arduino

UIFlow
