ATOM Socket Kit (HLW8023) - JP&US

SKU:K055

Description

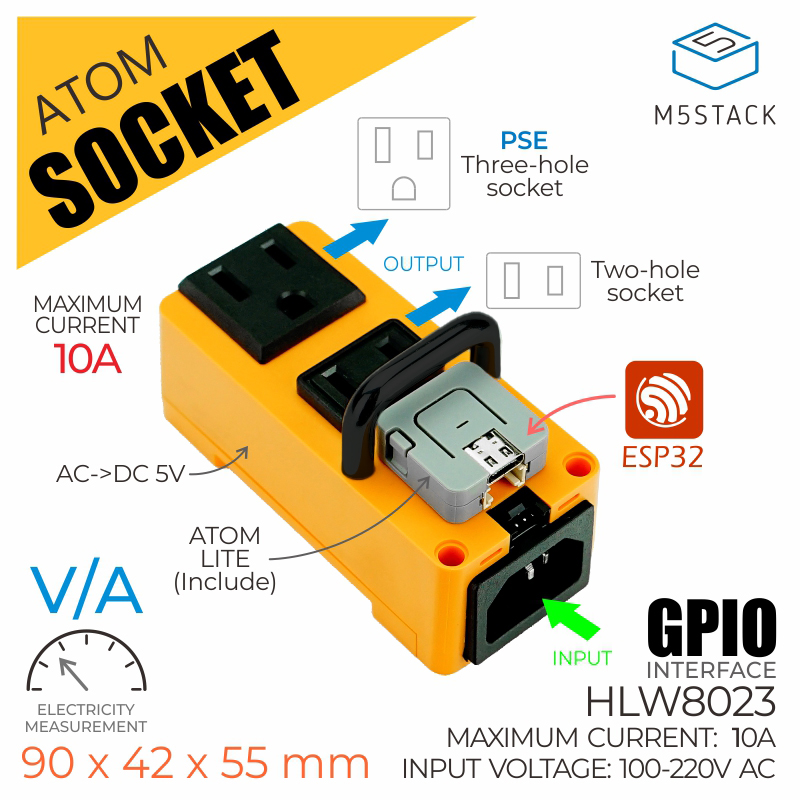

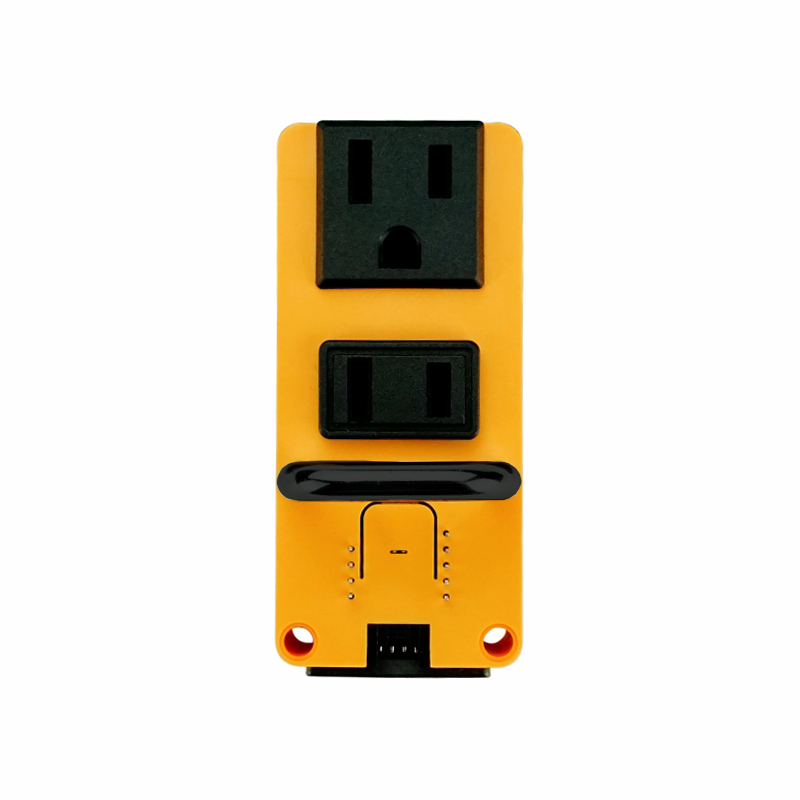

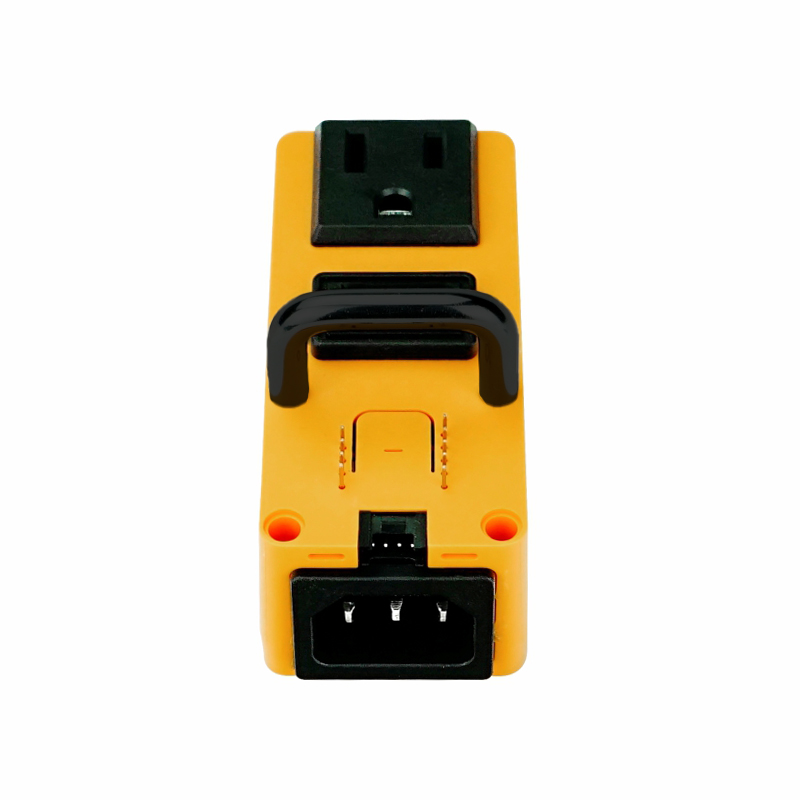

ATOM Socket is a smart power socket adapted to ATOM main control. Built-in HLW8032 high-precision energy metering IC, can read the electrical parameters (line voltage, current, active power, apparent power and power factor) of the socket through serial communication. The external jack adopts Japanese standard specifications, and the internal integrated single-circuit relay (AC-100~120V@10A) is used to control the power on and off of the socket. With the ATOM main control integrated with WiFi module, the power socket can be easily connected to the network for remote control And energy metering. The extra socket integrates HY2.0-4P interface, which can interact with external equipment (relay signal input, key signal output).

Product Features

  • Single relay control socket power on and off (AC:100~120V@10A/DC:28V@10A)
  • HLW8032 High Precision Energy Metering IC
  • Support voltage and current detection power calculation, within 1000:1 dynamic range:
    • The measurement error of active power reaches 0.2%
    • The effective current measurement error reaches 0.5%
    • The effective voltage measurement error reaches 0.5%
  • UART communication (baud: 4800)
  • ∑-Δ ADC, high-precision energy metering core
  • JP&US jack- PSE standard
  • HY2.0-4P external control interface

Includes

  • 1x ATOM Socket
  • 1x ATOM LITE

Application

  • Metering socket
  • Smart WIFI socket
  • Smart home appliance control

Specification

Resources Parameter
HLW8032 serial port communication baud rate 4800
Recommended load power <=1000W
Relay parameters AC:100~120V@10A / DC:28V@10A
Net weight 104g
Gross weight 116.6g
Product size 90*42*55mm
Package size 92*62*42mm

EasyLoader

EasyLoader is a simple and fast program burner, which has a built-in product-related case program, which can be burned to the main control through simple steps to perform a series of functional verification.

Download Windows Version Easyloader

Description:
Remotely control the ATOM Socket on and off the power supply, and monitor the power status

Pin mapping

ATOM G22 G23
ATOM Socket RX Relay

Schematic

-Datasheet - HLW8032
