Unit Weight I2C

SKU:U180

Description

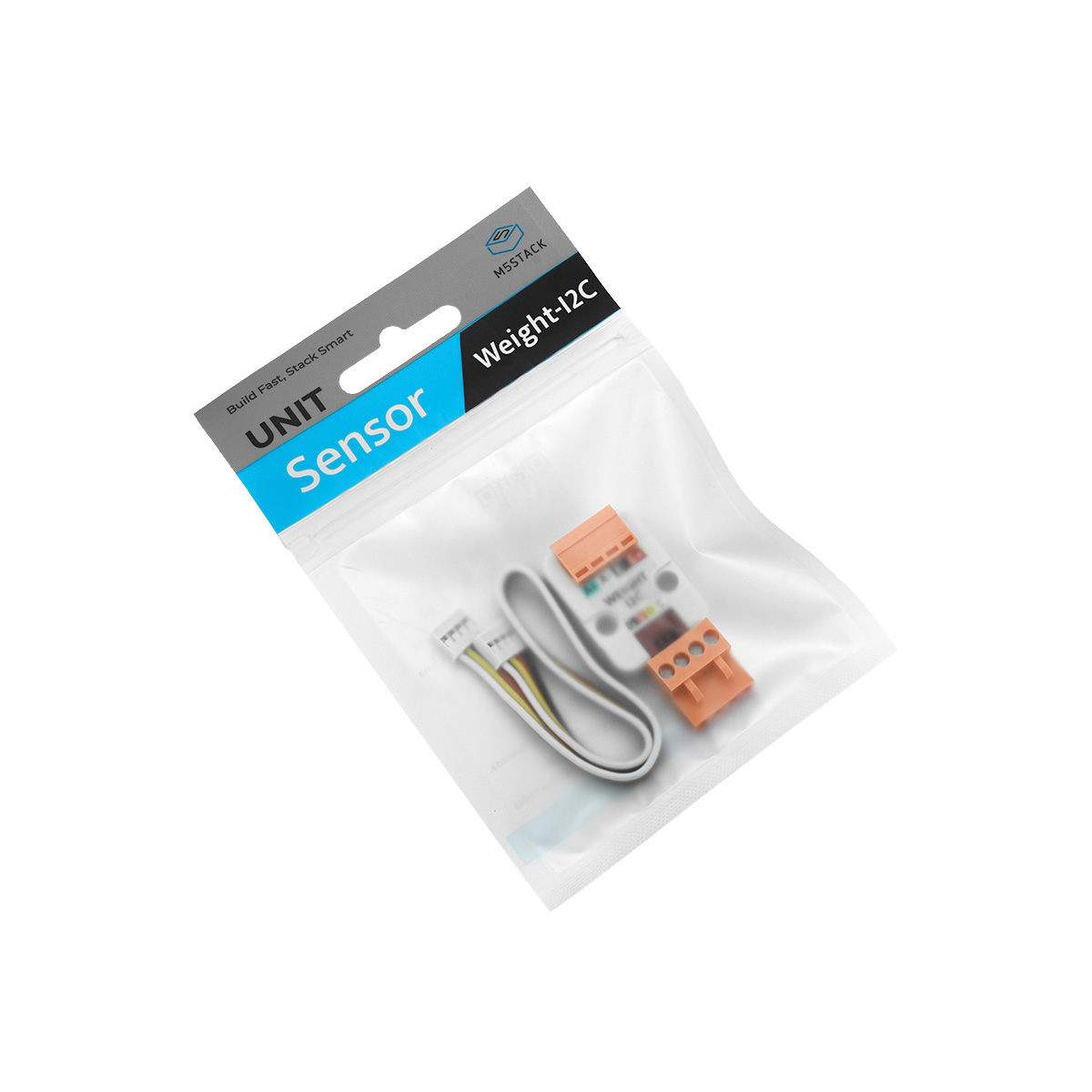

The Weight I2C Unit is a weight acquisition transducer unit that employs the "STM32+HX711 chip" solution, achieving precision weight measurement with 24-bit accuracy through I2C communication. It supports the parallel connection of multiple devices on the same I2C bus, providing users with greater flexibility in terms of a wider range and more data collection points. It is suitable for various applications such as industrial production, healthcare, logistics, laboratory research, and food processing.

Features

  • STM32F030F4P6+HX711
  • 24Bit measurement accuracy
  • I2C serial communication
  • Program platform: Arduino, UIFlow, etc

Includes

  • 1x Weight I2C Unit
  • 1x HY2.0-4P Cable(20cm)
  • 1x VH3.96-4P

Applications

  • Microgravimeter
  • Food Processing
  • Logistics Transportation
  • Laboratory Investigation

Specification

Resources Parameters
Resolution 24Bit
Communication Mode I2C(0x26)
Operating Temperature 0-40°C
Product Size 32*24*11.3mm
Package Size 136* 92* 13.7mm
Product Weight 5.2g
Package Weight 12.9g

Schematic

schematics
  • Connection Schematic Diagram
schematics

PinMap


Module Size

module size

Protocol

detail

Examples

Arduino

UIFlow

How to use Unit weight_i2c and related API instructions in the UIFlow1.0
How to use Unit weight_i2c and related API instructions in the UIFlow2.0

FAQ

Question: Diffenent between WEIGHT I2C Unit(U180)、WEIGHT Unit(U030)、Mini Scales Unit(U177)、Scales Kit(K121)and Scales Unit(U108)?

module size
