Cardputer-Adv Factory Firmware
Factory Firmware
When the device works abnormally, you can try re-flashing the factory firmware to check whether there is a hardware fault. Refer to the following tutorial. Use the M5Burner firmware flashing tool to flash the factory firmware to the device.
1. Preparation

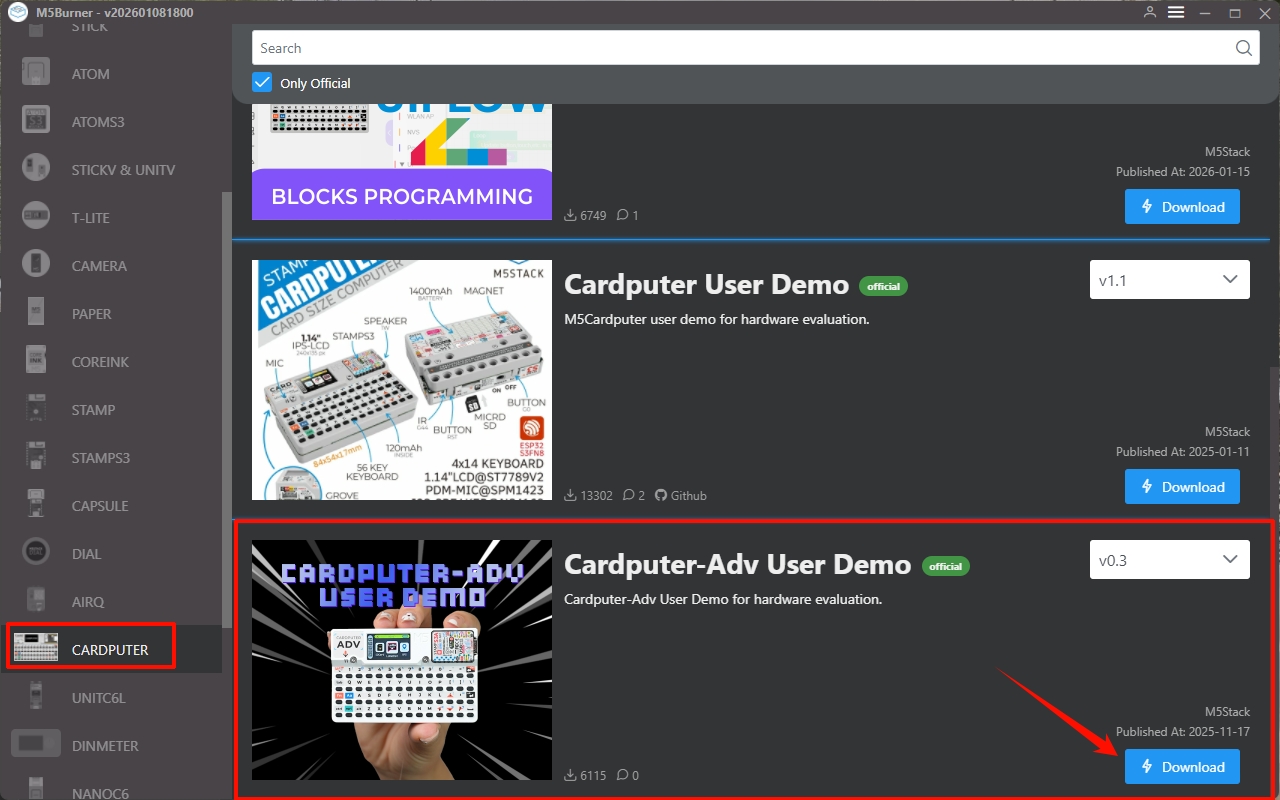

- Refer to the M5Burner tutorial to complete the download of the flashing tool, and refer to the figure below to download the corresponding firmware.
2. Download Mode

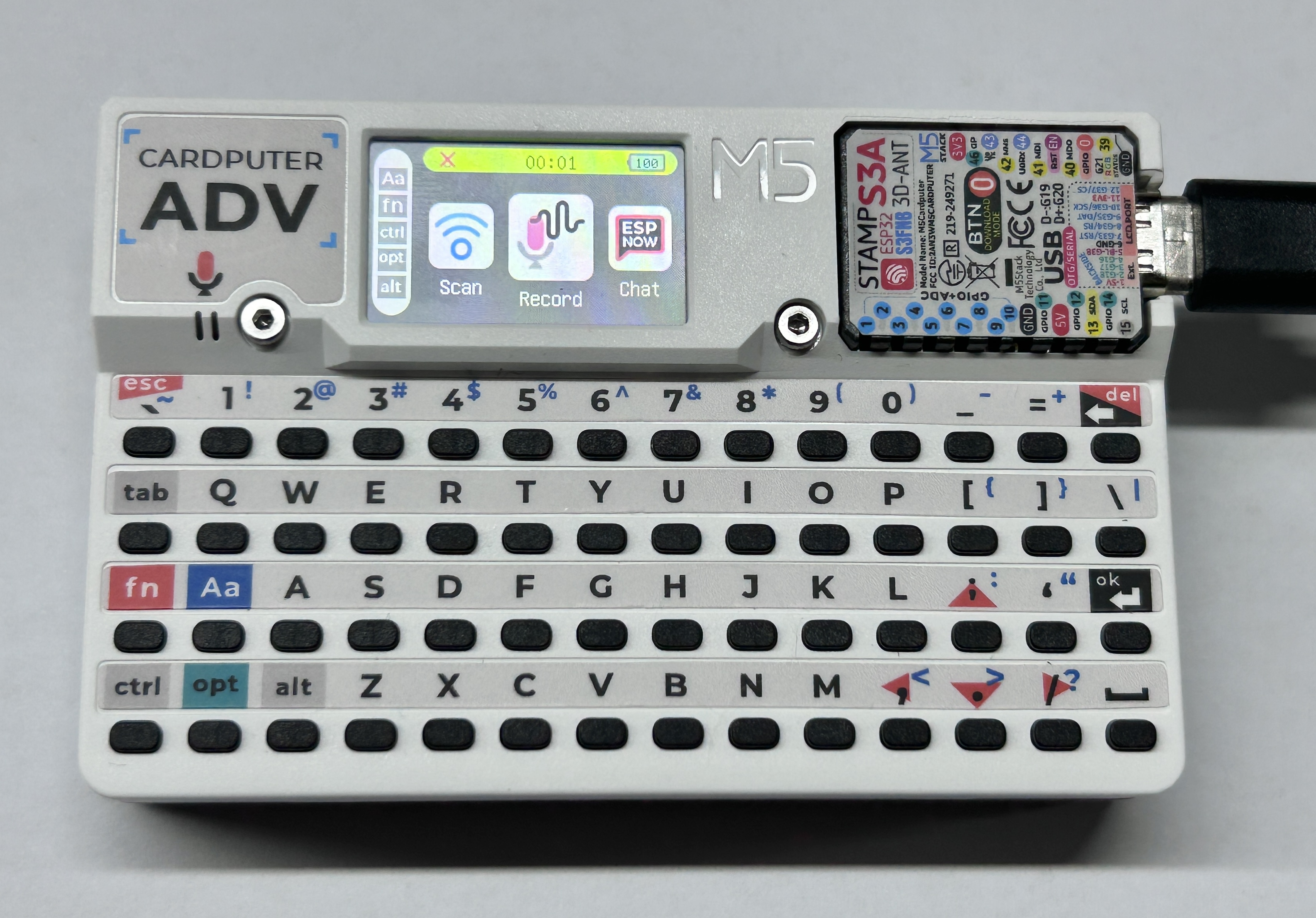

Set the power switch on the side of Cardputer-Adv to the OFF state, then press and hold the G0 button before powering on. Release it after the device is powered, and the device will enter download mode.
3. Port Selection

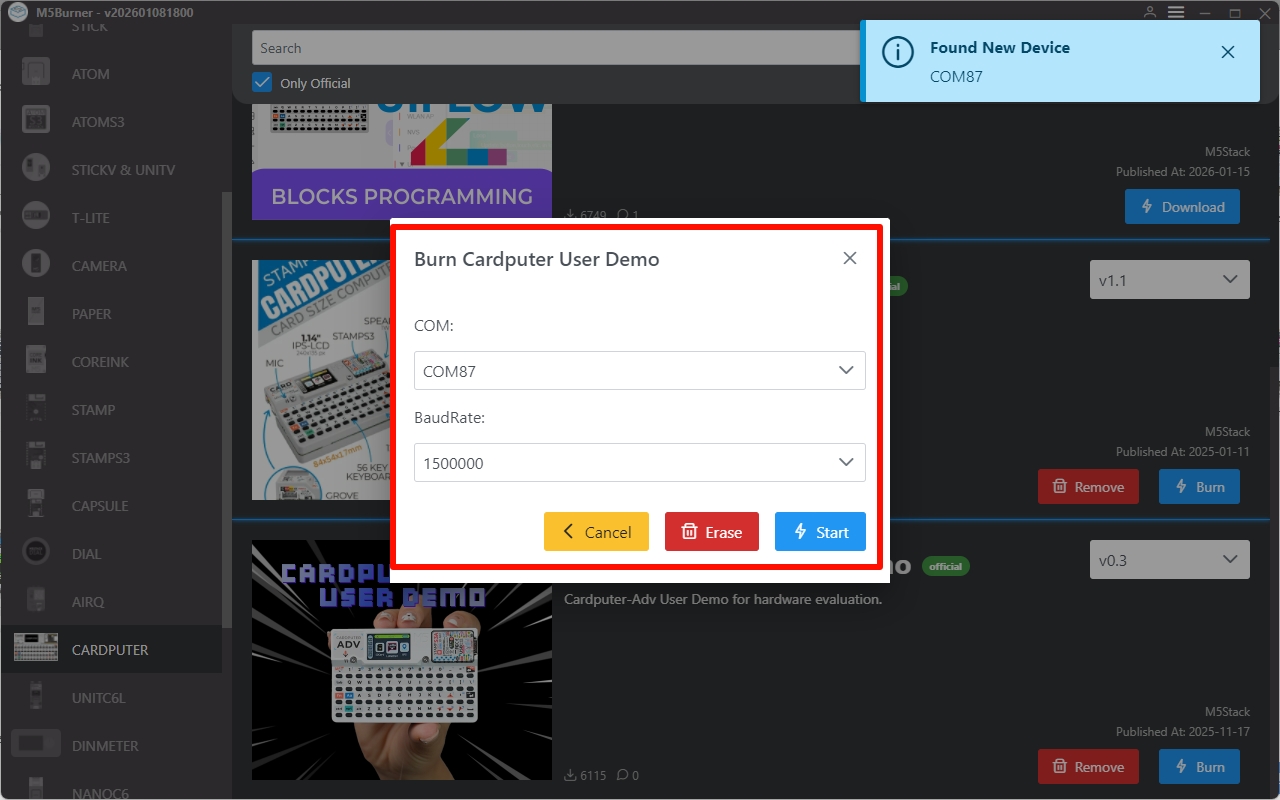

Connect the device to the computer via a USB cable. After the device enters download mode, select the corresponding device port in M5Burner.
4. Firmware Flashing

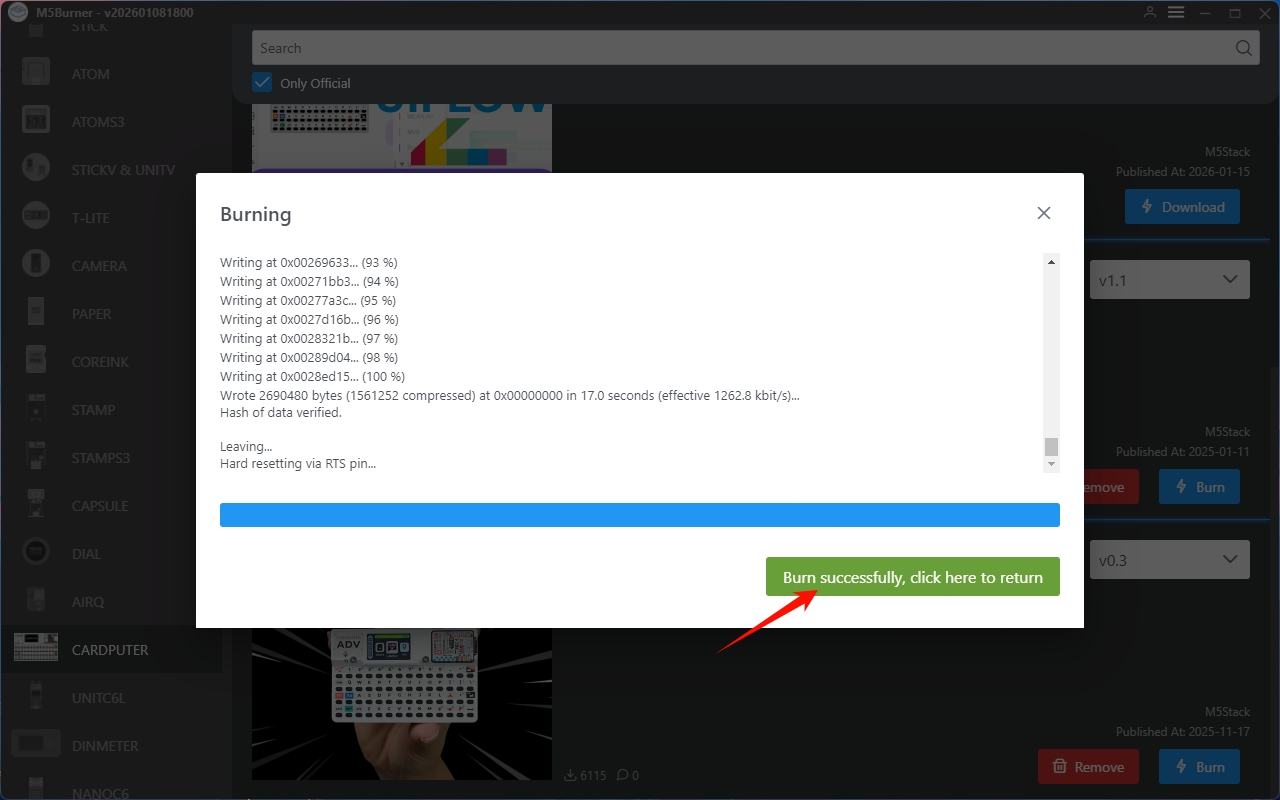

Click Start to begin flashing. After flashing is completed, the interface will display Burn successfully, click here to return.
The result is shown in the figure below:
